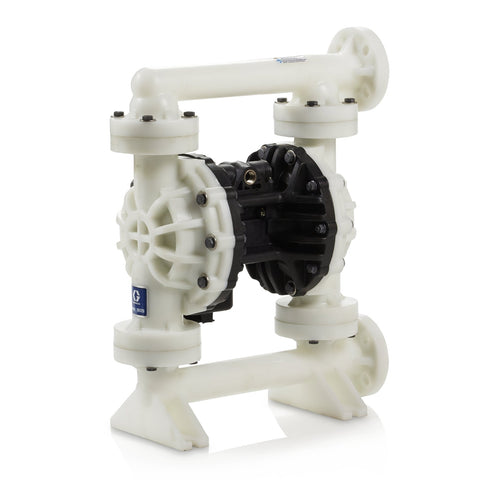

Graco | 654528 Husky 15120 PP Pump, End Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm
Graco
Model: 654528
The Husky 15120 air-operated diaphragm pump is equipped with a stall-free, low-pulsation air valve for smooth and rapid changeovers.
Its one-piece center section is designed to eliminate leaks and reduce maintenance requirements when compared to other diaphragm pumps.
- Offers up to 40% improved efficiency.
- Delivers the highest fluid flow rate in its class.
- Provides up to 5 times longer diaphragm life than other air-operated diaphragm pumps.
- Features an expanded material offering to accommodate a wide range of applications.
- Available with 1-1/2 in (38.1 mm) ANSI center and end-porting options.
- Delivers high flow of 120 gpm (454 lpm) in a compact, portable size.
- Achieves fluid pressure up to 125 psi (8.6 bar, 0.86 MPa).
- Operates without lubrication.
- Available in polypropylene and PVDF materials.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955679733 |
| Division | PRO |
| Height | 19.2 IN | 48.768 CM |
| Length | 18 IN | 45.720 CM |
| Width | 24 IN | 60.960 CM |
| Volume | 4.8 FT3 | 0.136 M3 |
| Shipping Weight | 66 LBS | 29.937 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 1 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 85 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 183 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 860 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.635 |
| Maximum Solid Size (in) | 0.25 |
| Maximum Solid Size (mm) | 6.35 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Series | 15120 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Air Pressure (MPa) | 0.86 |
| diaphragm_compatible_material | Santoprene |
