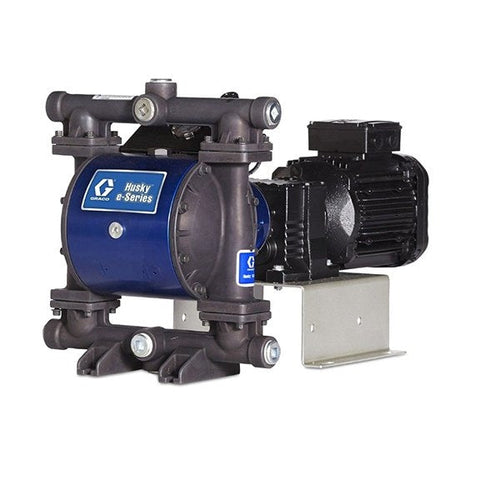

Graco | 648142 Husky 1050e AL (BSPT) Pump, IEC 90 Gearbox, AL Center Section, BN Seats, BN Balls & BN Diaphragm
Graco
Model: 648142
Husky e-Series pumps are designed for applications requiring low pulsation and a smooth flow. The patented air charged drive system eliminates or reduces pulsation without the need for expensive pulsation dampeners or surge tanks.
-
Durable Pump Technology
- Handles slurries and abrasives without pump damage.
- Suitable for shear-sensitive materials.
-
Diaphragm Pump Features
- Operates dry.
- No rotating or moving fluid seals.
- Self-priming capability.
-
Electric Drive Benefits
- Reduces energy consumption and operating costs.
- Enhances pump control.
- Enables accurate fluid metering.
-
Fluid Section Options
- Customize your pump with various material options for manifolds, seats, balls, and diaphragms.
-
Patent Pending Air Charged Drive
- Extends diaphragm life without affecting fluid properties.
- Reduces pulsation on the fluid outlet.
- Stalls under pressure without requiring additional switches or controls.
- The energy-efficient electric drive reduces energy consumption by up to 5 times compared to traditional air-operated diaphragm pumps.
- The seal-less diaphragm pump design prevents leaks and failures associated with dry running conditions.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652302513 |
| Division | PRO |
| Height | 29.25 IN | 74.295 CM |
| Length | 32.5 IN | 82.550 CM |
| Width | 19 IN | 48.260 CM |
| Volume | 10.452 FT3 | 0.296 M3 |
| Shipping Weight | 113 LBS | 51.256 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Air Pressure (bar) | 5.5 |
| Maximum Air Pressure (kPa) | 550 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (L/min) | 159 |
| Maximum Fluid Pressure (bar) | 4.8 |
| Maximum Fluid Pressure (kPa) | 480 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.175 |
| Maximum Storage Temperature (°C) | 40 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Series | 1050e |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Air Pressure (MPa) | 0.55 |
| diaphragm_compatible_material | Buna |
