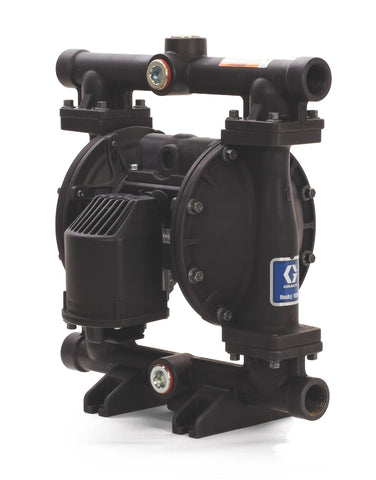

Graco | 647648 Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Fuel, TPE/AC
Graco
Model: 647648
The Husky 1050 air-operated diaphragm pump is equipped with a stall-free, low-pulsation air valve for smooth and rapid changeovers. Its one-piece center section design prevents leaks and reduces maintenance requirements compared to other diaphragm pumps.
- Extended Diaphragm Life: Offers up to 5 times longer diaphragm life, reducing maintenance and downtime.
- Modular Air Valve: Provides stall-free, low-pulsation operation for smooth and rapid changeovers.
- One-Piece Center Section: Eliminates air leaks, ensuring more efficient operation.
- Four Bolt Joint Design: Features a bolted design that ensures even sealing pressure for leak-free operation.
- Multiple Ports: Includes an increased number of ports for greater installation flexibility.
- Optional Features: Available with DataTrak (for runaway protection and material usage tracking) and Pulse Output (for cycle counting).
- Serviceable Pilot Valves: Spring-loaded, externally serviceable pilot valves enable faster changeovers and reduced pulsation.
- Enhanced Efficiency: Operates 30% more efficiently than the leading competitor.
- Increased Fluid Flow: Delivers 20% more fluid flow than the Husky 1040 model.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955540019 |
| Division | LED |
| Height | 16.8 IN | 42.672 CM |
| Length | 15.6 IN | 39.624 CM |
| Width | 8.4 IN | 21.336 CM |
| Volume | 1.274 FT3 | 0.036 M3 |
| Shipping Weight | 27.5 LBS | 12.474 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Outlet Thread Gender | Female |
| For Use With | Fuel Transfer |
| Maximum Air Consumption (SCFM) | 25 |
| Maximum Air Pressure (bar) | 3.5 |
| Maximum Air Pressure (kPa) | 350 |
| Maximum Air Pressure (psi) | 50 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (L/min) | 144 |
| Maximum Fluid Pressure (bar) | 3.5 |
| Maximum Fluid Pressure (kPa) | 350 |
| Maximum Fluid Pressure (psi) | 50 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.175 |
| Model | Husky |
| Overall Height (in) | 15.9 |
| Series | 1050 |
| Maximum Fluid Pressure (MPa) | 0.35 |
| Maximum Air Pressure (MPa) | 0.35 |
