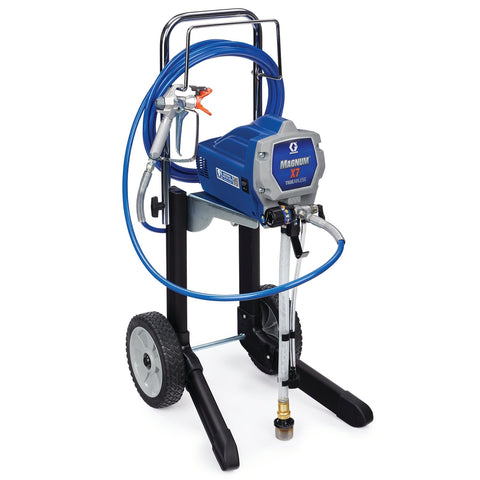

Graco | 262805 Magnum X7 Electric TrueAirless Sprayer
Graco
Model: 262805
The Magnum X7, equipped with a built-in cart, is designed to help DIY homeowners and handymen save time and money on interior projects, exterior houses, fences, and decks. It supports larger tip sizes for spraying heavier coatings, and the integrated cart enhances efficiency for any painting task.
- Hardened Stainless Steel Piston Pump: Delivers high pressure to spray unthinned paints.
- Flexible Suction Hose: Allows spraying directly from 1 or 5-gallon paint containers.
- Convenient Cart: Facilitates easy movement of the sprayer around the job site.
- Paint Saver Pail Hook: Enables effortless transport of 5-gallon paint containers with the cart.
- TrueAirless Spray Tip with SoftSpray Technology: Provides enhanced control and reduced overspray across a wide range of coatings.
- Power Flush Adapter: Connects to a garden hose for quick and simple cleaning.
- PushPrime: Ensures fast and reliable start-up every time.
- Adjustable Pressure Control: Offers straightforward adjustment of paint flow.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955310421 |
| Division | CED |
| Height | 30.25 IN | 76.835 CM |
| Length | 20.25 IN | 51.435 CM |
| Width | 15.5 IN | 39.370 CM |
| Volume | 5.495 FT3 | 0.156 M3 |
| Shipping Weight | 36 LBS | 16.329 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Engine Size (HP) | 0.625 |
| Fluid Outlet Size (mm) | 6.35 |
| Frame Configuration | Cart |
| Includes | SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick Start-Up Guide |
| Maximum Flow Rate (L/min) | 1.2 |
| Maximum Hose Length (ft) | 100 |
| Maximum Hose Length (m) | 30 |
| Maximum Tip Size (in) | 0.017 |
| Maximum Tip Size Gun 1 (in) | 0.017 |
| Maximum Working Pressure (psi) | 3000 |
| Maximum Working Pressure (kPa) | 20700 |
| Power Rating (HP) | 0.625 |
| Power Rating (kW) | 0.47 |
| Power Rating (W) | 466 |
| Maximum Working Pressure (MPa) | 20.7 |
| Pressure Control Type | Adjustable |
| Overall Width (mm) | 389 |
| Model | Magnum |
| Maximum Working Pressure (bar) | 207 |
| Overall Height (cm) | 94 |
| Overall Height (in) | 37 |
| Weight (kg) | 12 |
| Overall Height (mm) | 940 |
| Overall Length (cm) | 49 |
| Overall Width (in) | 15.3 |
| Overall Length (in) | 19.3 |
| Series | X7 |
| Overall Length (mm) | 490 |
| Overall Width (cm) | 38.9 |
| Recommended Annual Usage (gal) | 125 |
| Compatible Tip Size (in) | 0.009, 0.011, 0.013, 0.015, 0.017 |
| Pump Rod Type | Hardened Stainless Steel |
| Minimum Generator Power (W) | 2500 |
| Number of Guns | 1 |
| Amperage (A) | 9 |
| Product Series | Project |
