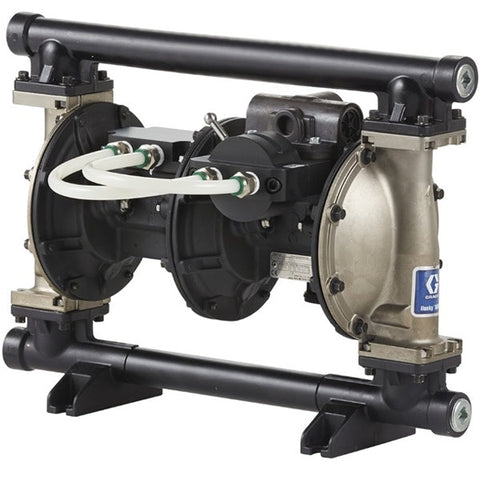

Graco | 24W769 Husky 1050HP 1 in. (25.4 mm) BSPT Al Pump, AL Center Section, SS Seats, CW Balls, CO Diaphragm

Graco

Model: 24W769

The Husky 1050HP air-operated diaphragm pump features Graco’s low-high pressure mode valve, allowing users to select between low and high pressure operating modes. Switching to low pressure mode can reduce air consumption by up to 50% when high pressure operation is not needed. This pump combines these features with the established quality and reliability of the standard Husky diaphragm pump design.

• Benefits of the Husky 1050HP Double Diaphragm Pump
  • Achieve increased fluid pressure without compromising flow rate.
  • The low-high pressure mode valve enables operation as a standard Air-Operated Double Diaphragm (AODD) pump or a high pressure AODD pump.
  • Reduce air consumption by up to 50% when using the low pressure mode.
  • Uses the same repair parts as the standard Husky 1050 diaphragm pump.
• External Pilots
  • Facilitates easier maintenance.
  • Reduces downtime with quick change times.
  • Spring-loaded design for faster changeovers.
• Modular Air Valve
  • Designed for ease of maintenance.
  • Operates without stalling and is lube-free.
• Fluid Manifold
  • Available in Stainless Steel or Aluminum.
• Additional Diaphragm
  • Included for high pressure operation.
• Low/High Pressure Operation Valve
  • Offers a selectable operating setting.
  • Contributes to reduced air consumption.
  • Allows high pressure to be used only when necessary.
• Wetted Components
  • Utilizes the same parts as the Husky 1050, which helps minimize repair part inventory.

Operational Specifications

Technical Specifications
