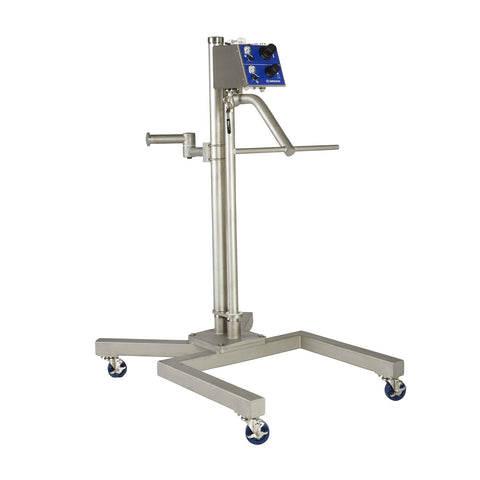

Graco | 24V312 6:1 Ratio SaniForce Elevator with Cart & Handle
Graco
Model: 24V312
For companies processing fewer than two containers per hour, Graco's SaniForce Elevator is designed to unload drums or bins, replacing traditional hoists and chains. It is suitable for small to medium-sized food and personal care businesses. When paired with Graco's SaniForce 2:1, 5:1, or 6:1 Piston Pumps, it effectively transfers small batches of low to medium viscosity fluids.
This elevator is recommended for small to medium-sized companies that currently use scooping, chains, or hoists for container unloading.
- FDA-compliant materials
- Suitable for sanitary applications to transfer low to medium viscosity fluids
- Facilitates lowering and lifting pumps into and out of drums, bins, and totes
- Articulating arm enables unloading of multiple containers from a single position
- Available in both mobile and stationary configurations
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955513228 |
| Division | PRO |
| Height | 54 IN | 137.160 CM |
| Length | 69.6 IN | 176.784 CM |
| Width | 44.4 IN | 112.776 CM |
| Volume | 96.57 FT3 | 2.735 M3 |
| Shipping Weight | 452 LBS | 205.024 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (in) | 0.5 |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| For Use With | Food, Personal Care, Pharmaceutical |
| Includes | Cart and Handle |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (bar) | 41 |
| Maximum Working Pressure (kPa) | 4100 |
| Maximum Working Pressure (psi) | 600 |
| Model | SaniForce |
| Portable | Portable |
| Maximum Working Pressure (MPa) | 4.1 |
