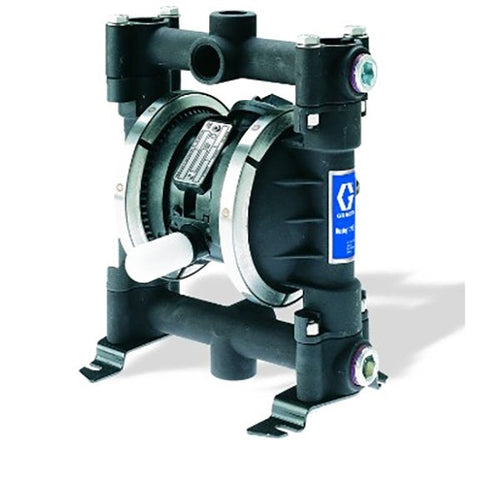

Graco | 24N258 Husky 716 AL Pump, PP Center Section, SS Seats, PTFE Balls & PO Diaphragm
Graco
Model: 24N258
The Husky 716 air-operated diaphragm pump includes an external controller for remote operation.
- Features center- and end-porting.
- Operates without mechanical seals, preventing fluid leaks or failures.
- Runs quietly at under 85 dBa, with an easy-to-use remote muffler for further noise reduction.
- Designed with an easily serviceable air valve and ball checks.
- Equipped with 3/4 inch (19.05 mm) center- and end-porting.
- Eliminates seals that could leak or fail.
- Provides quiet operation below 85 dBa and includes a simple remote muffler option for reduced noise.
- Features an accessible air valve and ball checks for straightforward maintenance.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955208049 |
| Division | PRO |
| Height | 12 IN | 30.480 CM |
| Length | 10.8 IN | 27.432 CM |
| Width | 8.4 IN | 21.336 CM |
| Volume | .63 FT3 | 0.018 M3 |
| Shipping Weight | 10.7 LBS | 4.853 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 1.9 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 1.9 |
| Fluid Outlet Size (mm) | 19 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (L/min) | 61 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| Maximum Solid Size (cm) | 0.2383 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.4 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 10.43 |
| Series | 716 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| diaphragm_compatible_material | PTFE |
| compressor_required | Yes |
