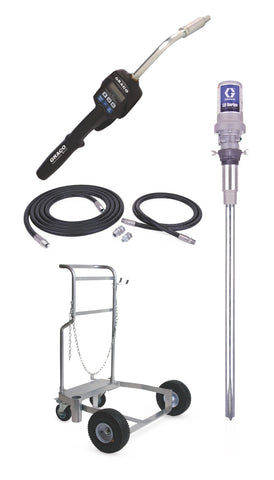

Graco | 24H959 LD Series 5:1 Mobile 55 Gallon (200 Liter) Oil CE Pump Package - Preset Meter, Rigid Extension, BSPP
Graco
Model: 24H959
The LD Series pumps are designed for lower-volume applications, offering affordability and comprehensive features to help you maintain a competitive edge. These pumps provide a compact, flexible, and durable solution.
- Three Inch Air Motor: Delivers increased power for enhanced flow rates.
- Engineered for Durability: Features a patented cup and plate design that eliminates wear-prone O-rings, ensuring a more durable and longer-lasting product.
- Extended Seal Life: The in-line pump design aligns the air motor piston and fluid piston rods to maximize seal lifespan.
- Pilot Valves: The patented self-cleaning design improves reliability in environments with dirty air and minimizes pressure drop during rapid changeovers, reducing stalling and promoting smoother flow.
- Built-In Thermal Relief and Inlet Strainer: Integrated thermal relief protects your equipment from thermal expansion, while the built-in inlet strainer safeguards the pump from contaminants.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955029675 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Working Pressure (bar) | 52 |
| Maximum Working Pressure (kPa) | 5200 |
| Maximum Working Pressure (psi) | 750 |
| Number of Pieces | 8 |
| Air Inlet Size (in) | 0.25 |
| Maximum Working Pressure (MPa) | 5.2 |
| Model | LD |
