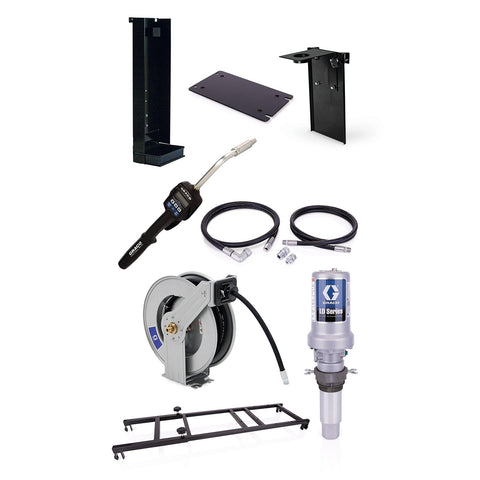

Graco | 24H728 LD Series 3:1 Stationary 275 Gallon (1040 Liter) Oil Pump Package - Preset Meter Type
Graco
Model: 24H728
The LD Series pumps are designed for lower-volume applications, offering affordability and comprehensive features to help you maintain a competitive edge. These pumps are engineered for a compact, flexible, and durable solution.
- Three Inch Air Motor: Delivers increased power for improved flow rates.
- Engineered for Durability: Features a patented cup and plate design that eliminates O-rings, providing a more durable and longer-lasting solution.
- Modular Air Valve: Allows for easy configuration of air inlet and exhaust locations with only four bolts, simplifying installation.
- Pilot Valves: Incorporates a patented self-cleaning design for enhanced reliability in environments with dirty air and minimizes pressure drop for reduced stalling and smoother flow.
- Built-In Thermal Relief and Inlet Strainer: Includes integrated thermal relief to protect equipment from thermal expansion and a built-in inlet strainer to prevent pump damage from contaminants.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955050662 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 2.5400 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4000 |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Working Pressure (bar) | 52 |
| Maximum Working Pressure (kPa) | 5200 |
| Maximum Working Pressure (psi) | 750 |
| Air Inlet Size (in) | 0.25 |
| Maximum Working Pressure (MPa) | 5.2 |
| Model | LD |
