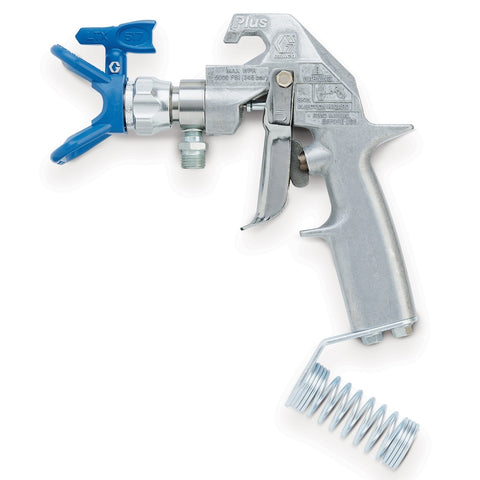

Graco | 246468 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC X
Graco
Model: 246468
The Flex Plus Airless Spray Gun is designed for applying heavy coatings and joint compounds. It includes a 2-finger trigger, a RAC X 517 SwitchTip, and a Guard.
- Ergonomic Handle: Reduces fatigue and increases comfort during extended use.
- No Adjustment Needle: Allows for quick and simple repairs.
- Patented Needle Design: Enhances product lifespan.
- Large Fluid Path: Minimizes the risk of clogging.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955913066 |
| Division | CED |
| Height | 2.15 IN | 5.461 CM |
| Length | 8.3 IN | 21.082 CM |
| Width | 12.35 IN | 31.369 CM |
| Volume | .128 FT3 | 0.004 M3 |
| Shipping Weight | 1.83 LBS | 0.830 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Male |
| Component A Inlet Size (cm) | 0.635 |
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Size (mm) | 6.35 |
| Component A Inlet Thread Type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (cm) | 0.229 |
| Fluid Orifice Size (mm) | 2.29 |
| For Use With | Airless Sprayers |
| Gun Weight (g) | 510 |
| Gun Weight (kg) | 0.51 |
| Gun Weight (lb) | 1.125 |
| Gun Weight (oz) | 18 |
| Includes | RAC X 517 SwitchTip, RAC X HandTite Guard |
| Maximum Fluid Pressure (bar) | 345 |
| Maximum Fluid Pressure (kPa) | 34500 |
| Maximum Fluid Pressure (psi) | 5000 |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 120 |
| Model | Flex Plus |
| Purge Method | Liquid |
| Series | Airless Spray Gun |
| Trigger Lock | Locking |
| Trigger Type | Mechanical |
| Product Type | Spray Gun |
| Sound Pressure Level (dB(A)) | 78 |
| Maximum Fluid Pressure (MPa) | 34.5 |
| Gun Model | Flex Plus |
