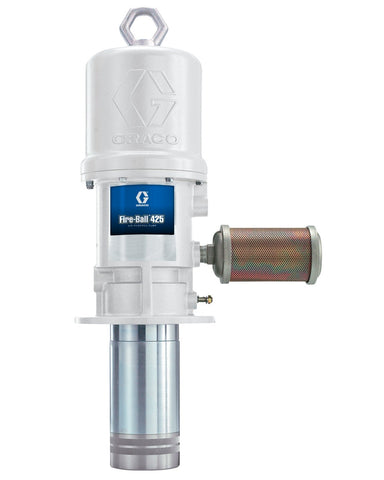

Graco | 244846 Fire-Ball 425 3:1 Series Universal Size Oil Pump - Wall-Mounted Package
Graco
Model: 244846
The Fire-Ball 425 is equipped with a 4.25 inch (107.9 mm) air motor, providing the necessary power for extended pipe runs and high-volume dispensing. This pump is particularly suitable for applications involving simultaneous multiple dispenses.
For your most demanding high-volume applications, the Fire-Ball 425 is the recommended pump.
- Durable Construction: The air motor housing is made of thick cast aluminum, ensuring exceptional durability.
- Reduced Maintenance: The air motor assembly has fewer moving parts, leading to less downtime and lower repair costs.
- Effective Sealing: Non-metallic poppet valves provide reliable sealing, even in contaminated air environments, ensuring extended operational life without requiring repairs.
- Optimized Seal Longevity: The in-line pump design aligns the air motor piston and fluid piston rods to maximize the lifespan of the seals.
- Corrosion Resistance: Key components are treated with liquid salt nitriding, nickel plating, stainless steel, aluminum, and chrome for enhanced corrosion resistance and extended service life.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955648081 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| Includes | 3:1 Fireball 425 Pump, Hose/Fitting Kit, Fluid Hose, Air Hose, Filter Regulator, Air Shutoff Valve, Fluid Shutoff Valve, Wall-Mount Bracket |
| Maximum Working Pressure (bar) | 37 |
| Maximum Working Pressure (kg/cm²) | 38 |
| Maximum Working Pressure (kPa) | 3700 |
| Maximum Working Pressure (psi) | 540 |
| Series | 425 |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Maximum Air Working Pressure (psi) | 180 |
| Maximum Flow Rate (gpm @ 80 cpm) | 13.4 |
| Maximum Working Pressure (MPa) | 3.7 |
| Model | Fire-Ball |
