Graco | 244628 Fire-Ball 425 Series 6:1 Universal Size Oil Pump - Wall-Mounted Package
Graco
Model: 244628
The Fire-Ball 425 is equipped with a 4.25 inch (107.9 mm) air motor, providing the necessary power for extended pipe runs and high-volume dispensing. This pump is particularly suitable for applications involving simultaneous multiple dispenses.
For your most demanding high-volume applications, the Fire-Ball 425 is the recommended pump.
- Durable Construction: The air motor housing is made of thick cast aluminum, ensuring exceptional durability.
- Reduced Maintenance: The air motor assembly has fewer moving parts, leading to less downtime and lower repair costs.
- Effective Sealing: Non-metallic poppet valves provide reliable sealing, even in contaminated air environments, ensuring extended operational life without requiring repairs.
- Optimized Seal Longevity: The in-line pump design aligns the air motor piston and fluid piston rods to maximize the lifespan of the seals.
- Corrosion Resistance: Key components are treated with liquid salt nitriding, nickel plating, stainless steel, aluminum, and chrome for enhanced corrosion resistance and extended service life.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955644830 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 1.27 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Gender | Female |

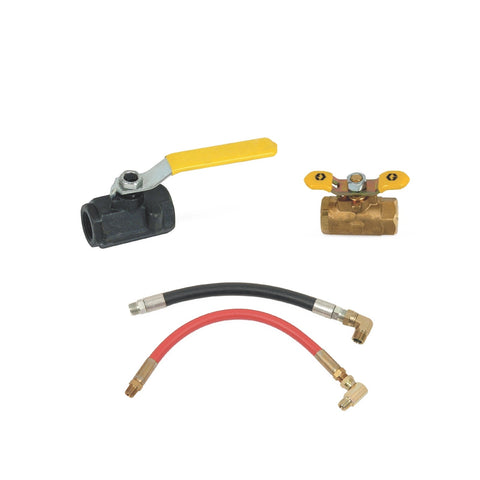

| Includes | Fire-Ball 425 6:1 Pump, Filter Regulator, Hose and Fitting Kit, Air Shutoff Valve, Fluid Shutoff, Wall Mount Bracket |
| Maximum Working Pressure (bar) | 76 |
| Maximum Working Pressure (kPa) | 7600 |
| Maximum Working Pressure (psi) | 1100 |
| Series | 425 |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Maximum Air Working Pressure (psi) | 180 |
| Maximum Flow Rate (gpm @ 80 cpm) | 6.6 |
| Pump Weight (lb) | 35 |
| Maximum Working Pressure (MPa) | 7.6 |
| Model | Fire-Ball |
