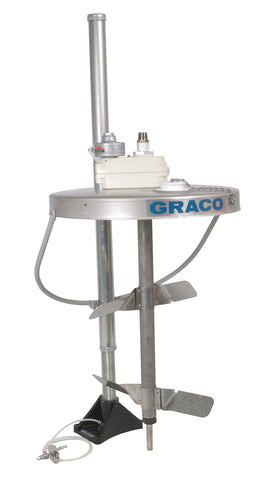

Graco | 231414 Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit, air driven, 1/2 HP, 32 inches (81.25 cm) long
Graco
Model: 231414
Heavy duty back-geared drum agitator includes an elevator, drum cover, and siphon kit.
- Heavy duty gearbox is designed for mixing high viscosity materials.
- Leak-free and oil-less gearbox design prevents material contamination.
- Stainless steel agitator and cover provide corrosion resistance and are compatible with waterborne materials.
- Twin paddles ensure thorough mixing of finishing materials.
- Siphon option enables material transfer through the agitator shaft.
- Access port allows for easy sampling and inspection of material during operation.
- Maximum viscosity capacity is 3,000 cps.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955709232 |
| Division | IPD |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| For Use With | 55 Gallon (208 Liter) Drum |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 1200 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Power Rating (HP) | 0.25 |
| Weight (kg) | 11.7 |
