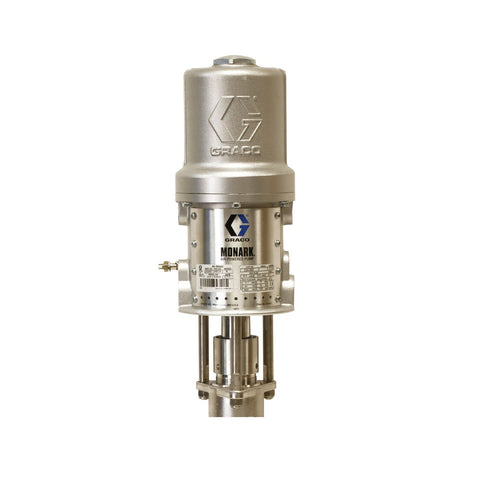

Graco | 224350 Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE Packings
Graco
Model: 224350
Monark pumps are engineered for high-production applications, delivering consistent and controllable fluid transfer with their dependable Monark air motor. They are suitable for a broad spectrum of fluids, including cleaning agents, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers, and varnishes.
- Available in drum and stubby lengths for adaptable mounting and application.
- Features a positive displacement, 2-ball piston design for uniform and easily controlled delivery.
- Offered in stainless steel or carbon steel models to accommodate diverse fluid types.
- Includes a fluid return stanchion for circulation back to the pump.
- Equipped with Ultra High Molecular Weight Polyethylene (UHMWPE) packings to enhance pump longevity when handling abrasive fluids.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955038943 |
| Division | IPD |
| Height | 11.5 IN | 29.210 CM |
| Length | 63.5 IN | 161.290 CM |
| Width | 10 IN | 25.400 CM |
| Volume | 4.226 FT3 | 0.120 M3 |
| Shipping Weight | 38 LBS | 17.237 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| Includes | Drum Length |
| Maximum Air Inlet Pressure (bar) | 12.41 |
| Maximum Air Inlet Pressure (kPa) | 1241 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (L/min) | 9.46 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (bar) | 62 |
| Maximum Working Pressure (kPa) | 6200 |
| Maximum Working Pressure (psi) | 900 |
| Model | Monark |
| Portable | Non-Portable |
| Series | 2-Ball |
| Maximum Working Pressure (MPa) | 6.2 |
