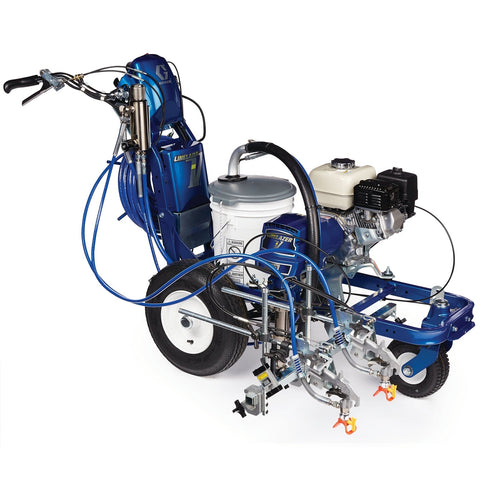

Graco | 17H457 LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun
Graco
Model: 17H457
For 1 or 2-gun airless line striping that requires additional power, the LineLazer V 5900 HP Automatic Series striper is a suitable option. These durable machines provide enhanced performance and consistent lines for basic striping tasks.
The HP Automatic Series includes advanced features for automatic line production, such as skip-lines, and offers real-time job performance data for proof-of-job requirements.
-
Automatic Paint Gun System
- Automatically stripes skip-lines.
- Reduces operator fatigue through push-button line production.
- Features a quality solenoid-driven system.
-
Auto-Layout II
- Simplifies parking lot layout.
- SmartControl measures while you walk and places pre-marks.
- Eliminates the need for measuring tape, string lines, or aerosol cans.
- Cuts layout time by half.
-
LiveLook Display with SmartControl
- Provides striping information at a glance.
- Tracks, measures, and controls all aspects of the job.
- Offers accessible proof-of-job data from the J-Log System with USB Download.
- Maintains consistent spraying pressure for optimal line quality.
-
J-Log System with USB Download
- Provides valuable job information.
- Proof of job data enables more striping opportunities.
- USB download capability allows capturing and saving all job data.
-
Honda GX Engine
- Delivers reliable, easy-to-start power.
- Contractor-preferred for excellent power and proven reliability.
- Oil Alert system automatically shuts down the engine if oil levels drop too low, preventing damage.
-
EasyMark Gun Adjustment System
- Facilitates easy gun adjustments.
- Ensures perfect gun alignment every time with an easy-to-use guide mark system.
- Supports 2-gun capability with the QuikSelect gun selector.
-
EZ Align Wheel System
- Ensures perfect striper tracking.
- Features simple front wheel alignment that requires no special tools.
-
DualComfort Handlebar System
- Allows for easy handlebar adjustment.
-
Endurance Chromex Pump
- Provides a reliable, long-life pump.
- Offers industry-best pump performance with a field-proven design.
- Handles demanding materials with long-life rod treatment.
- Is 4X harder than ordinary chrome.
-
Additional Features
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652320043 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Bead System | Optional |
| Engine Brand | Honda |
| Engine Model | GX160 |
| Fuel Tank Capacity (gal) | 0.95 |
| Fuel Tank Capacity (L) | 3.6 |
| Includes | LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
| Maximum Flow Rate (L/min) | 6.06 |
| Maximum Sound Pressure Level (dB(A)) | 87.1 |
| Maximum Tip Size (cm) | 0.1092 |
| Maximum Tip Size (in) | 0.043 |
| Maximum Tip Size (mm) | 1.092 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Power Rating (HP) | 5.5 |
| Power Rating (kW) | 4.1 |
| Power Rating (W) | 4100 |
| Series | 5900 |
| Weight (kg) | 120.7 |
| Product Series | HP Automatic |
