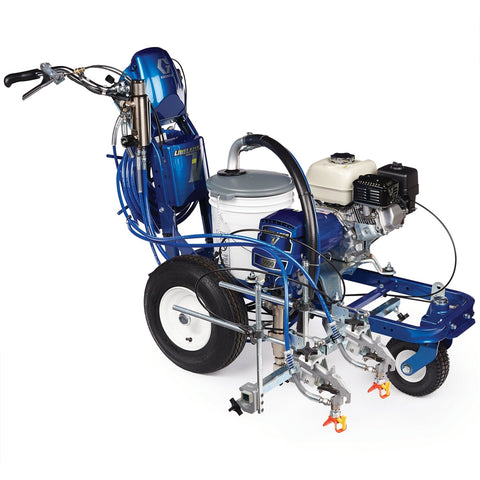

Graco | 17H455 LineLazer V 5900 Standard Series Gas Airless Line Striper, 2 Manual Guns
Graco
Model: 17H455
For 1 or 2-gun airless line striping performance with added power, the LineLazer V 5900 Standard Series striper is a suitable choice. These durable machines produce consistent lines for basic striping requirements.
The LineLazer V Standard Series is designed for contractors performing higher volume re-striping jobs that require single-color, single or dual gun striping with basic pattern applications.
-
LiveLook Display with SmartControl
- Provides striping information at a glance.
- Enables tracking, measurement, and control of all job aspects.
- Offers accessible proof-of-job data via the J-Log System with USB Download.
- Ensures consistent spraying pressure for accurate lines.
-
Honda GX Engine
- Delivers reliable, easy-starting power.
- Contractor-preferred for its power and proven reliability.
- Features Oil Alert to prevent engine damage by shutting down if oil levels are too low.
-
EasyMark Gun Adjustment System
- Facilitates simple gun adjustments.
- Ensures perfect gun alignment with an easy-to-use guide mark system.
- Supports 2-gun operation with the QuikSelect gun selector.
-
EZ Align Wheel System
- Ensures perfect striper tracking.
- Features simple front wheel alignment that requires no special tools.
-
DualComfort Handlebar System
- Allows for easy handlebar adjustment.
-
QuikSelect Gun Selector
- Provides simple gun control.
- Independently controls two guns with a single lever for solid/skip functionality.
-
Endurance Chromex Pump
- Offers reliable, long-life pump performance.
- Delivers industry-best pump performance with a field-proven design.
- Handles demanding materials due to its long-life rod treatment.
- Is 4X harder than standard chrome.
-
Easy Out Pump Filter
- Simplifies pump maintenance and reduces clogging.
- Features an inside-out design that minimizes mess and tip clogs.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652320029 |
| Division | CED |
Technical Specifications
| Specification | Value |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX160 |
| Fuel Tank Capacity (gal) | 0.95 |
| Fuel Tank Capacity (L) | 3.6 |
| Includes | Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
| Maximum Flow Rate (L/min) | 6 |
| Maximum Sound Pressure Level (dB(A)) | 87.1 |
| Maximum Tip Size (cm) | 0.0737 |
| Maximum Tip Size (in) | 0.029 |
| Maximum Tip Size (mm) | 0.7366 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (in) | 44.5 |
| Overall Height (mm) | 1130.3 |
| Overall Length (cm) | 173.36 |
| Overall Length (in) | 68.25 |
| Overall Length (mm) | 1733.55 |
| Overall Width (cm) | 87 |
| Overall Width (in) | 34.25 |
| Overall Width (mm) | 870 |
| Power Rating (HP) | 5 |
| Power Rating (kW) | 3.73 |
| Series | 5900 |
| Weight (kg) | 113 |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Product Series | Standard |
