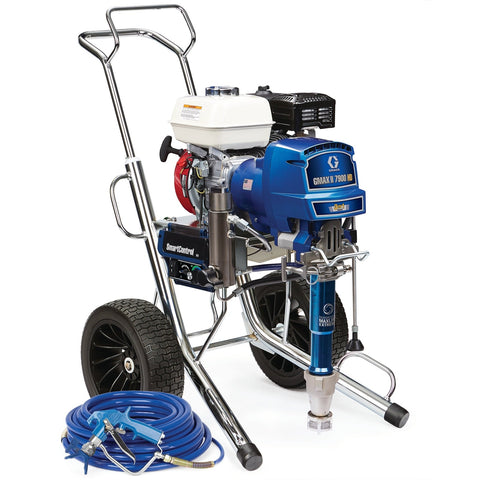

Graco | 17E843 GMAX II 7900 HD 3-in-1 IronMan Series Gas Airless Sprayer
Graco
Model: 17E843
The GMAX II 7900 HD airless texture sprayer is designed for high-volume applications and demanding jobs. It handles skim coating for Level 5 finishes, drywall mud application in various finishes, and all types of paints, primers, and heavy coatings.
Built for extreme conditions on large commercial and industrial job sites, the GMAX II HD IronMan Series airless texture sprayers offer exceptional power and durability.
-
Endurance Vortex MaxLife Extreme Piston Pump
- Provides extended durability and operational life.
- Features Vortex Rotating Piston Technology for enhanced performance.
- Oversized passages ensure high-velocity flow, rotating the piston for even wear.
- Equipped with long-life packings and piston rod for 3X increased pump rod life.
- Offers maximum versatility for various spraying materials.
- Includes long-life ceramic and stainless steel balls for broad material compatibility.
-
MaxFlo 2 with Pack-Out Protection
- Reduces material pack-out, increasing productivity.
- Utilizes self-cleaning Vibra-Seal Technology to prevent material buildup.
- Ensures continuous spraying with True Pack-Out Protection.
- Optimized fluid passageways are designed for heavy coatings.
-
SmartControl 3.0
- Delivers consistent fan patterns and pressure control.
- Ideal for low-overspray applications with the lowest dead band across all pressure settings.
-
Precision Advantage Drive
- Engineered for extended durability.
- Operates with extremely quiet performance, improving jobsite conditions.
- Comes with a Lifetime Warranty.
-
ProConnect 2 Pump Replacement System
- Minimizes costly downtime.
- Allows for pump exchange in minutes without tools, pins, or loose parts.
-
Flat Proof Tires
- Eliminates the risk of flat tires.
- Resistant to punctures from nails, screws, and other sharp debris.
-
LED Display
- Provides an easy-to-read interface for quick reference, displaying:
- Current pressure setting.
- Job, lifetime, and gallon counters.
- Self-diagnostic information.
- Provides an easy-to-read interface for quick reference, displaying:
-
Honda GX Engine
- Offers reliable and powerful performance with easy starting.
- Includes Oil Alert technology that shuts down the engine to prevent damage if oil levels are low.
-
Crushproof Inlet Strainer
- Provides durable filtration.
- Resists harsh impacts to maintain consistent flow through the filter.
-
Additional Features:
- Rugged, durable cart design.
- Heavy-duty prime valve.
- Easy Out pump filter.
- WatchDog Pump Protection System.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652817000 |
| Division | CED |
| Height | 40.5 IN | 102.870 CM |
| Length | 37 IN | 93.980 CM |
| Width | 27.5 IN | 69.850 CM |
| Volume | 23.848 FT3 | 0.675 M3 |
| Shipping Weight | 207 LBS | 93.894 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Replacement Pump | 17H837 |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Engine Size (HP) | 6.5 |
| Engine Size (kW) | 4.85 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Outlet Size (mm) | 9.525 |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (cm) | 0.9525 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Inlet Diameter (mm) | 9.525 |
| Hose Reel Type | Hose Rack |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Maximum Flow Rate (L/min) | 8.33 |
| Maximum Hose Length (ft) | 200 |
| Maximum Hose Length (m) | 60 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.048 |
| Maximum Tip Size Gun 1 (in) | 0.048 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Working Pressure (kPa) | 22700 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Power Rating (W) | 4847 |
| Maximum Working Pressure (MPa) | 22.8 |
| Pressure Control Type | SmartControl 3.0 |
| Overall Width (mm) | 620 |
| Model | GMAX II HD |
| Maximum Working Pressure (bar) | 227 |
| Overall Height (cm) | 98.6 |
| Overall Height (in) | 40.5 |
| Weight (kg) | 80 |
| Overall Height (mm) | 986 |
| Overall Length (cm) | 96.8 |
| Overall Width (in) | 24.4 |
| Overall Length (in) | 38.1 |
| Series | 7900 |
| Overall Length (mm) | 1026 |
| Overall Width (cm) | 62 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Number of Guns | 1 |
| Filter Mesh Size | 60 |
| Maximum Tip Size Gun 2 (in) | 0.035 |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Maximum Tip Size Gun 3 (in) | 0.027 |
| Maximum Tip Size Gun 4 (in) | 0.023 |
| Power Rating (cc) | 200 |
| Product Series | IronMan |
