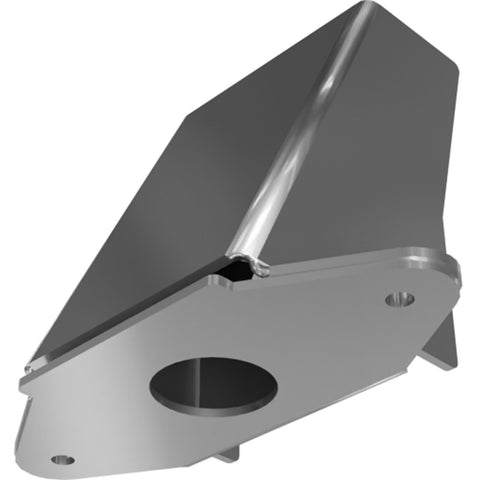

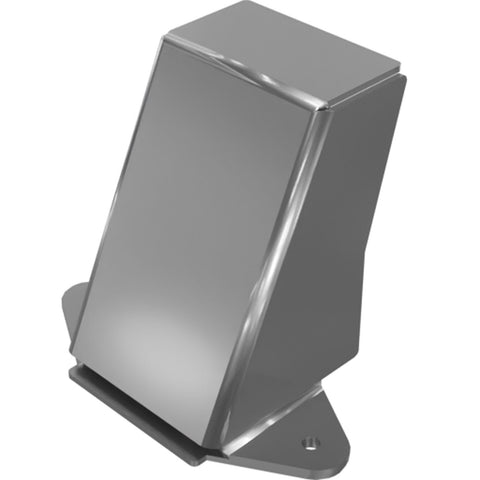

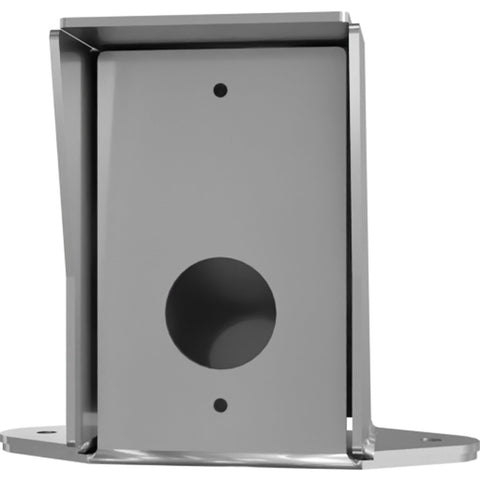

Genie : ASSEMBLY, KEYPAD, RT Part No. 1305339GT
Part Description
ASSEMBLY, KEYPAD, RT
*Please note Genie Lift Connect telematics must be installed for full functionality.
To add Access Manager to your Lift Connect enabled machine, follow these instructions.
1. Find your specific model number in the table below and order one each of the listed items.
2. Download the User Guide and Install Instructions from the Documentation tab of this page.
3. Complete the installation following the instructions.
4. Once installed contact the Lift Connect team at AWP.LiftConnect@terex.com to upgrade your Lift Connect subscription.
Universal parts required for all models
| Model | Keypad | Hardware Kit |
|---|---|---|
| Universal parts - required for all models | 1296895GT | 1320959GT |
Find the machine model in the table below and order the required parts for that model
| Model | Wiring Harness | Mounting Bracket |
|---|---|---|
| GS-1330 m, GS-1530,GS-1532, GS-1930, GS-1932,GS-2032, GS-2046, GS-2632, GS-3232, GS-2646, GS-3246 | 1296896GT | 1299991GT |
| GS-4046, GS-4047, GS-4655 | 1296897GT | 1299991GT |
| RT69, RT90 | 1296896GT | 1305339GT |
| GR, QS, GRC | 1305083GT | 1309477GT |
| SX-105 XC, SX-125 XC, SX-135 XC, SX-150, SX-180, ZX-135/70 | 1296896GT | |
| Z33, Z45FE, Z51, Z45XC | 1296896GT | |
| S-40/45 XC, S-60/65 XC, S-80/85 XC, Z-60/37, S-60J, S-80J | 1296897GT | |
| Z-60, Z-80 | 1296897GT | |
| GTH | 1296897GT | |
| X45BE, Z40 | 1305083GT | |
| Compact GTH | 1305083GT | |
| Z30N, Z34DC AND Z45DC | 1309221GT |
MUST HAVE THE LIFT CONNECT TELEMATICS EQUIPPED ON THE MACHINE AND REPLACE THE RESPECTIVE DECALS APPROPRIATELY ON THE COVER THAT MIGHT BE REMOVED WHILE MOUTING ACCESS MANAGER KEYPAD
