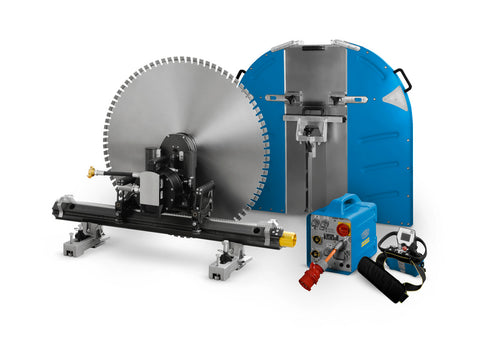

Diamond Products WSE1621 High Cycle Wall Saw - Part # 5801549, Cat # 88831
This high-cycle electric wall saw is designed for heavy-duty concrete cutting applications. It features a water-cooled 20 kW motor capable of reaching cutting depths of 28 inches.
- Cutting Depth28in
- Blade Capacity63in
- Power20kW
- Voltage480V
- Saw Weight51lbs
01Features & Build
-
High Cycle Electric
-
Operational Features
- Reduced weight compared to similar class wall saws
- Water-cooled 20 kW high-frequency motor
- Maximum cutting depth of 28 inches and blade capacity of 63 inches
- Bi-directional blade rotation capability

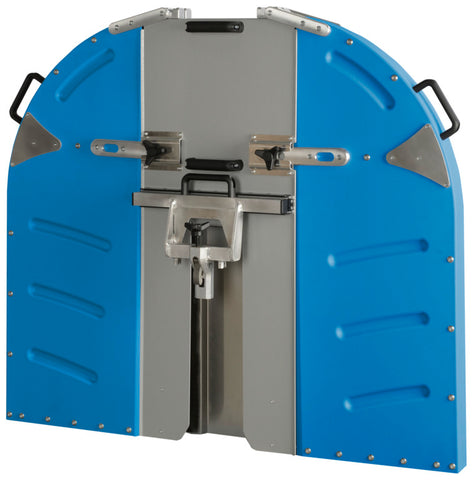

- Lightweight, stay-level blade guard design
- Tool-free quick connection for drive motor and inverter
- Integrated color communication interface
- P2 drive technology for consistent power delivery
02Specifications16
| Brand | Diamond Products |
|---|---|
| Model | WSE1621 |
| Part Number | 5801549 |
| Catalog Number | 88831 |
| Max Cutting Depth | 28" |
| Max Blade Capacity | 63" |
| Free detachable up to 0 | 35" |
| Blade fange mounting | Quick-release flange |
| Blade mount | Standard 1" Flushcut = LYFC |
| Nominal power (32A) | 20 kW |
| Voltage | 480V |
| Frequency | 60 Hz |
| Saw weight (complete) | 51 lbs. |
| Main drive motor weight | 33 lbs. |
| Inverter weight | 24 lbs. |

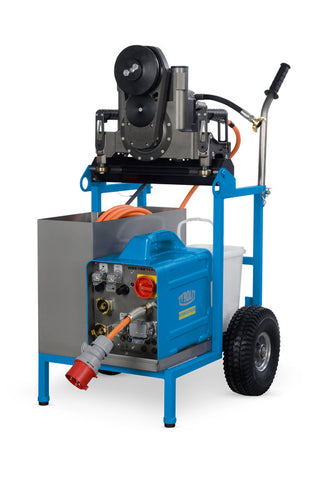

| Complete WSE1621 Includes | Main motor, remote control, trolley cart, 40" blade guard, 42" aluminum track, 86" aluminum track, tool kit, and (4) V-track aluminum feet |
Specifications are supplied by the manufacturer and are subject to change without notice.
