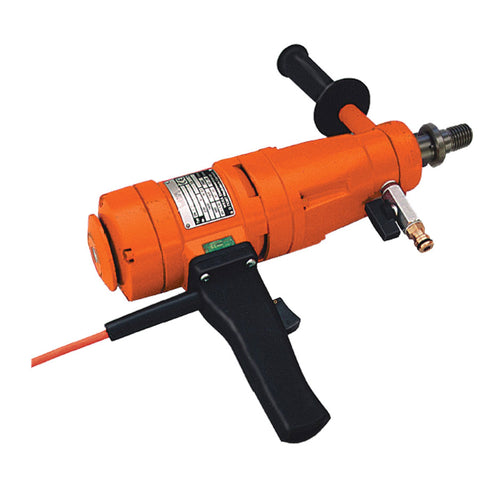

Diamond Products Weka DK16 Hand Held Drill Motor - Part # 4244067, Cat # 93678
This electric drill motor is designed for coring applications with a maximum bit capacity of 6 inches when mounted or 3 inches for hand-held use. It features a three-speed gearbox and an integrated electronic overload system to protect the motor during operation.
- Bit Capacity3inch
- Voltage110V
- Amperage19A
01Features & Build
-
Operational Features
- Integrated electronic overload protection system
- Dual leveling bubbles to ensure precise coring alignment
- Side handle included for increased operator stability
- Water connection port for wet coring applications
- Spindle options include 5/8-11 or 1.250-7 threads
- Three-speed transmission for bits up to 3 inches
- Includes carrying case, side handle, 1/2 inch BSP to 5/8-11 adapter, and wrench
02Specifications11
| Brand | Diamond Products |
|---|---|
| Model | Weka DK16 |
| Part Number | 4244067 |
| Catalog Number | 93678 |
| Engine/Motor Make | Weka |
| Engine/Motor Model | DK16 |
| Motor/Engine Power | 19 amp, 110 volt |
| Power Source | Electric |
| Drill Motor Max Bit Capacity | 6" (mounted) / 3" (hand-held) |
| Speed | Three Speed |
| Motor RPM | 580/1400/2900 |
Specifications are supplied by the manufacturer and are subject to change without notice.
