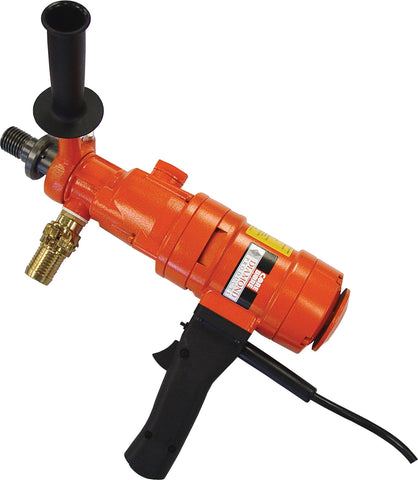

Diamond Products Weka DK13 Hand Held Drill Motor - Part # 4244062, Cat # 47055
This electric drill motor is designed for wet or dry coring applications. It features a three-speed gearbox capable of handling bits up to 6 inches when mounted or 3 inches for hand-held use.
- Bit Capacity6in
- Amperage14amp
- Voltage115volt
- Speeds3
01Features & Build
-
Operational Features
- Integrated thermal overload protection switch
- Side handle included for operator stability
- Dual ports for dust extraction or water connection
- Spindle options include 5/8”-11 or 1.250”-7
- Three-speed transmission for bits up to 3” hand-held or 6” mounted
- Equipped with two leveling bubbles for alignment
- Compatible with M-3 and M-4 drill stands
- Includes carrying case, wrench, and 1/2” BSP male to 5/8-11 male adapter
02Specifications11
| Brand | Diamond Products |
|---|---|
| Model | Weka DK13 |
| Part Number | 4244062 |
| Catalog Number | 47055 |
| Engine/Motor Make | Weka |
| Engine/Motor Model | DK13 |
| Motor/Engine Power | 14 amp, 115 volt |
| Power Source | Electric |
| Drill Motor Max Bit Capacity | 6" (mounted) / 3" (hand-held) |
| Speed | Three Speed |
| Motor RPM | 580/1400/2900 |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
