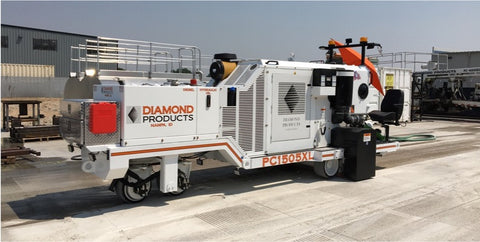

Diamond Products PC1505XL Pavement Grinder & Groover - Part # PC1505XL, Cat # 103369
Part number: PC1505XL
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times

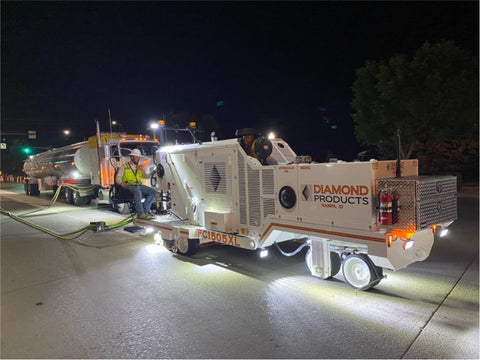

This pavement grinder and groover is designed for high-production profiling of concrete and asphalt surfaces. It features a 302 HP Caterpillar diesel engine and a 50-inch cutting width capacity.
- Horsepower302HP
- Cutting Width50in
- Fuel Capacity150gallons
01Features & Build
-
Diesel Powered
-
FEATURES
- Performs high-production grinding, profiling, and grooving on asphalt and concrete.
- Operator station is centrally located for left or right side operation.
- Optional head temperature monitoring system available with Fahrenheit or Centigrade display.
- Depth and profile control wheels are hydraulically adjustable.
- Includes a 360-degree vision system with four cameras and a display screen.
- Grinds within 10 inches of vertical walls.
- Equipped with a digital odometer for total footage and daily production tracking.
- 5-inch diameter blade shaft accommodates 12-inch diameter blades up to a 50-inch cutting width.
- Front bogey assembly adjusts for a wheelbase between 11 feet 6 inches and 13 feet 5 inches.
- Integrated vacuum system includes a silencer and a diaphragm slurry pump.
- Depth control wheels feature side-to-side adjustment for cut matching.
- Manual grooving depth control wheels mount on the blade-shaft center line.
- Suitable for longitudinal highway and airport grooving applications.
02Specifications4
| Brand | Diamond Products |
|---|---|
| Model | PC1505XL |
| Part Number | PC1505XL |
| Catalog Number | 103369 |
Specifications are supplied by the manufacturer and are subject to change without notice.
