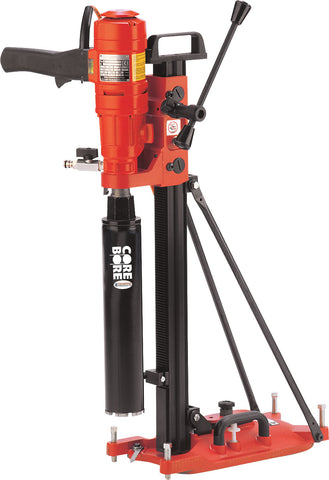

Diamond Products M-4 Multi-Purpose Core Rigs DK12 14 amp, 115 volt Weka 580/1400/2900 - Part # 4240010, Cat # 46871

$3,911.00

This multi-purpose core rig is designed for general, plumbing, electrical, and mechanical contractors. It supports a 6-inch bit capacity for rig-mounted drilling and a 3-inch capacity for hand-held applications.

Bit Capacity6in
Hand Capacity3in

01Features & Build

Operational Features
- Designed for general, plumbing, electrical, and mechanical contractors
- Includes reversible slide handle for left or right side operation
- Features a 1-5/8” x 2” hard anodized aluminum column
- Equipped with a top carrying handle and quick release motor mount
- Includes carriage lock and leveling bolts on all bases
- Supports hand-held drilling options
- Base includes 4 leveling screws

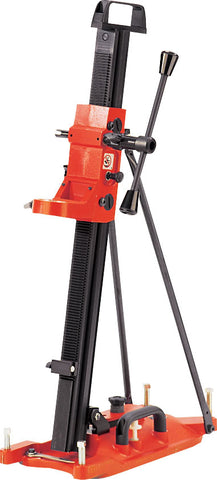

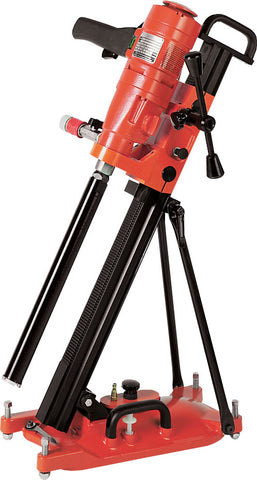

- Portable design with angle braces on combo bases for drilling up to 45 degrees
- Utilizes 4 adjustable slide bearings for carriage rigidity

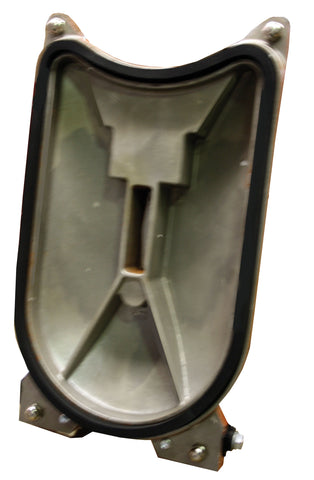

- Allows for quick conversion between vacuum and anchor base mounting

02Specifications9

Brand	Diamond Products
Model	M-4
Part Number	4240010
Catalog Number	46871
Engine/Motor Model	DK12
Motor/Engine Power	14 amp, 115 volt
Engine/Motor Make	Weka
Motor RPM	580/1400/2900
Rig Type	Anchor rig

Specifications are supplied by the manufacturer and are subject to change without notice.

03Related Products21

Other configurations and accessories published for this product.

04Downloads4

05Shipping & Ordering

Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.

Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
