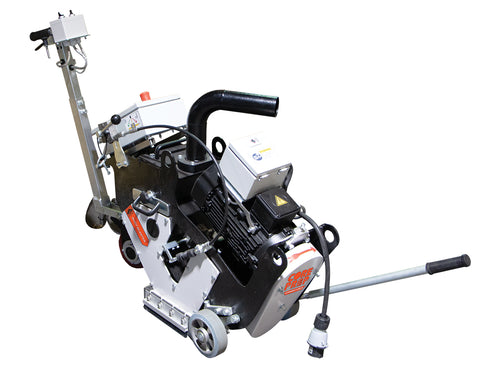

Diamond Products CPSB810E3 Shot Blaster - Part # 5802007, Cat # 112184
This electric shot blasting machine prepares concrete surfaces for coatings and overlays. It features a modular design that allows for increased blast widths and includes a variable feed drive for consistent operation.
- Blast Width8.85in
- Voltage460V
- Weight463lbs
01Features & Build
-
FEATURES
- Variable speed drive for forward and reverse operation
- Integrated LED lighting
- 5-blade blast wheel design
- Modular frame for expansion module compatibility
- Built-in operating hours meter
- Collapsible rear axle for transport
02Specifications14
| Brand | Diamond Products |
|---|---|
| Model | CPSB810E3 |
| Part Number | 5802007 |
| Catalog Number | 112184 |
| Voltage / Frequency | 460V / 60 Hz |
| Blast Width | 8.85" |
| Current Consumption | 16 Amp |
| Speed (drive motor) | 2880 RPM |
| Vacuum Connection | 2-3/4" |
| Application | dry |
| Length | 58-1/4" |
| Width | 13-1/4" |
| Height | 41-1/4" |
| Weight | 463 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads1
04Shipping & Ordering
This item ships at approximately 463 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
