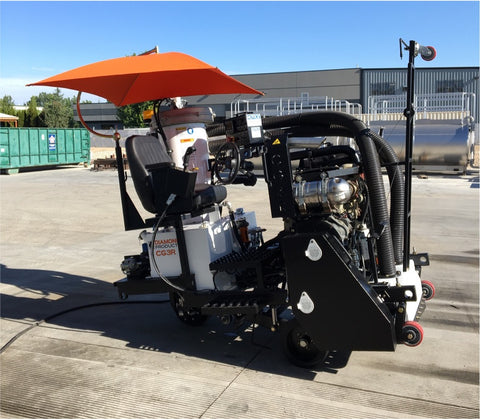

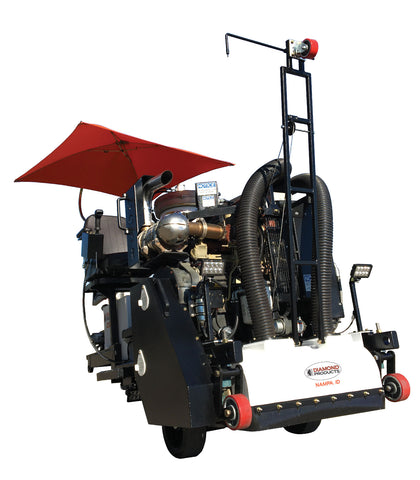

Diamond Products CG3R Pavement Groover - Part # CG3R, Cat # 99357
This ride-on pavement groover is designed for high-production grooving of long pavement sections. It features an integrated slurry vacuum and discharge system to manage debris during operation.
- Cutting Width30inches
- Weight3200lbs
- Blade Diameter12inches
- Horsepower74.9HP
01Features & Build
-
Operational Design

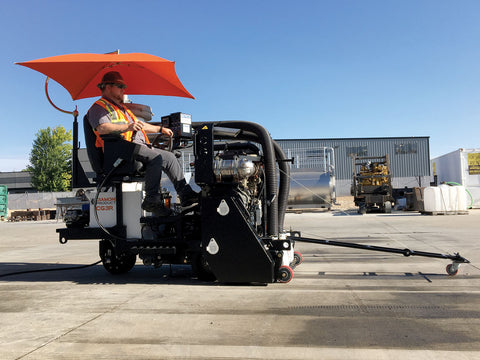

- Riding unit configured for long-distance pavement grooving
- Compact chassis for increased maneuverability
- Heavy-duty construction for job site durability
-
Slurry Management
- Integrated on-board vacuum and discharge system
-
Cutting Specifications
- 30” (77.2cm) grooving width
- Compatible with 12” (30.48cm) diameter blades with 5” (12.7cm) bore
-
Controls and Lighting
- Joystick speed control with integrated raise/lower switch
- Equipped with work lights for night operation
02Specifications19
| Brand | Diamond Products |
|---|---|
| Model | CG3R |
| Part Number | CG3R |
| Catalog Number | 99357 |
| Engine | Deutz Turbo Diesel 2.9L, 74.9HP Tier 4 Final |
| Dimensions | Length 87-5/8" (222.57cm), Width 54-1/8" (137.48cm), Height 87-7/8" (223.2cm) |
| Weight | 3200 lbs. (1451.5Kg) Estimated |
| Fuel Capacity | 25.85 Gallons (97.85 liters) |
| Blade Shaft | 5" (12.7cm) Diameter with 4-draw Bolts |
| Blade Diameter | 12" (30.48cm) |
| Cutting Width | 30" (76.2cm) |
| Blade Shaft RPM | 13000 Maximum |
| Blade Shaft Drive | Belt Driven |
| Hydraulics | Electric/Hydraulic Blade Raise/Lower |
| Ground Drive | Joystick-controlled Belt Driven Closed Looped Hydrostatic Pump |
| Vacuum System | Hydraulically-driven Fan and Self Priming Contrifugal Slurry Pump |
| Electrical | 12 Volt |
| Speed | Up to 250 Feet Per MInute Forward/Reverse |
| Machine Controls | Power Steering, Joystick Ground Drive Control with Integral Head Raise/Lower Switch |
Specifications are supplied by the manufacturer and are subject to change without notice.
