Diamond Products CCH25 Circular/plunge Wire Saw - Part # 5802240, Cat # 74442

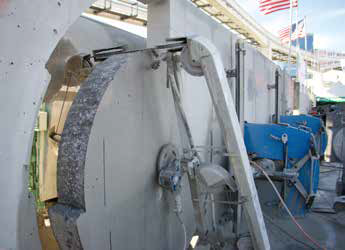

This circular and plunge wire saw is designed for precision concrete cutting in both horizontal and vertical orientations. It accommodates cut diameters ranging from 20 to 98 inches with a maximum thickness capacity of 24 inches.
- Min Diameter20in
- Max Diameter98in
- Max Thickness24in
- Min Wire11ft
01Features & Build
-
Operational Features
- Powered by a hydraulic motor
- Designed for simplified application and reduced installation time
- Provides an economical alternative to large-diameter core drilling
- Enables elliptical cutouts and expanded sawing capabilities
- Features integrated wire tensioning and adjustable water supply
-
Power Requirements
- Requires a 13-16 GPM power pack
- Compatible with BS-2 remote control unit
-
Design and Guidance
- Constructed with a sturdy frame for durability
- Utilizes plastic guides for wire protection and optimal water delivery
- Supports horizontal and vertical cutting configurations
- Equipped with swivel rollers for precise wire tracking
- Mounts via a 10-inch drilled hole and includes a protective wire plate
02Specifications9
| Brand | Diamond Products |
|---|---|
| Model | CCH25 |
| Part Number | 5802240 |
| Catalog Number | 74442 |
| Description | CCH25 Complete Wire Saw with 22 CC Motor |
| Minimum Diameter | 20” |
| Maximum Diameter | 98” |
| Maximum Thickness | 24” |
| Wire Requirement | Minimum 11 feet |
Specifications are supplied by the manufacturer and are subject to change without notice.
