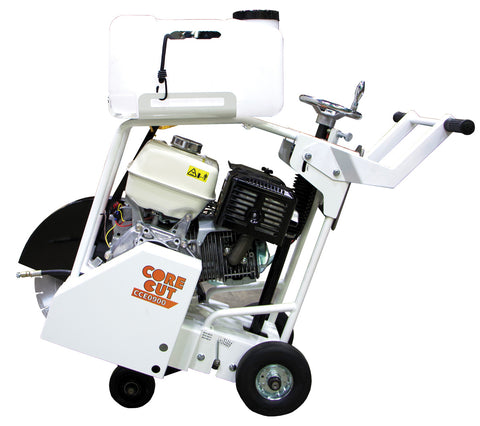

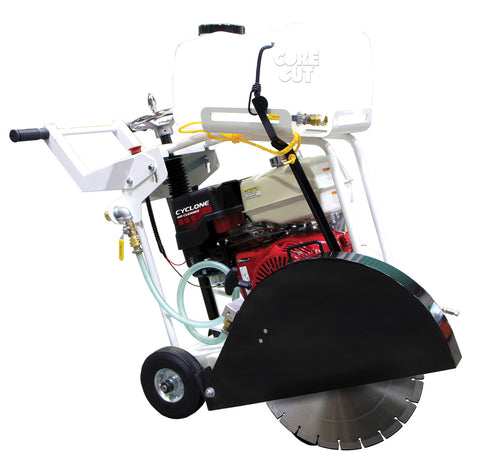

Diamond Products CCE0900 Portable Walk Behind Saw - Part # 5801613, Cat # 30396
This walk-behind saw is designed for concrete cutting applications using a 20-inch blade capacity. It is powered by an 11.7 HP Honda GX390 engine to handle depths up to 7-5/8 inches.
- Blade Capacity20in
- Cutting Depth7-5/8in
- Horsepower11.7HP
- Weight275lbs
01Features & Build
-
Operational Features
- Supports up to 20-inch blades
- Heavy-duty frame construction designed for two-person lifting
- 11.7 HP Honda GX390 engine equipped with a cyclone air filter
- Integrated depth indicator for measurement accuracy
- Precision screw feed system for controlled blade raising and lowering

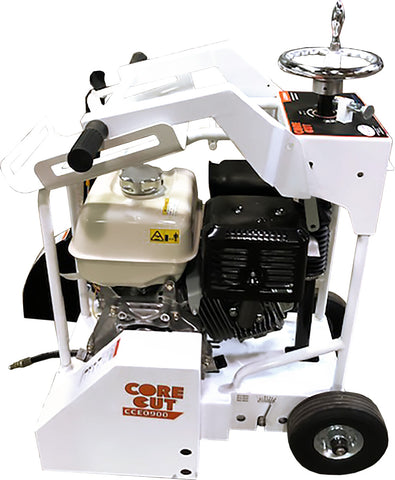

- Adjustable handlebar configuration
- Poly V-belt drive system
- Includes water tank and lifting bale for dust suppression
02Specifications11
| Brand | Diamond Products |
|---|---|
| Model | CCE0900 |
| Part Number | 5801613 |
| Catalog Number | 30396 |
| Max. Depth of Cut | 7-5/8" |
| Blade Shaft RPM | 2600 |
| Blade Shaft Diameter | 1" |
| Arbor Size | 1" with single drive pin |
| Blade Raise/Lower | Precision screw feed |
| Sawing Side | Right side only |
| Weight | 275 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
04Shipping & Ordering
This item ships at approximately 275 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
