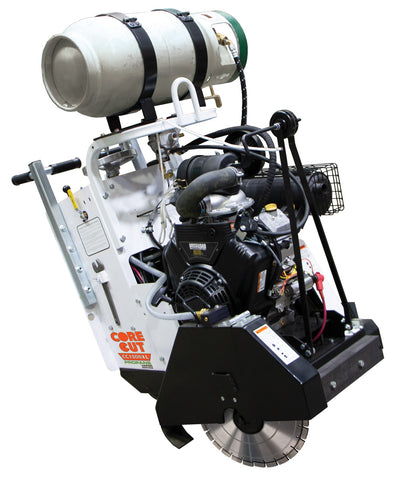

Diamond Products CC1823BVXLP Propane Walk Behind Saw CC1823BVXLP-20S 20" - Part # 5801427, Cat # 101228
This walk-behind saw utilizes a propane-powered engine for indoor or enclosed concrete cutting applications. It accommodates blades ranging from 14 to 20 inches to achieve cutting depths up to 7-5/8 inches.
- Blade Capacity14-20in
- Max Cut Depth7-5/8in
- Blade RPM2600RPM
- Drive Speed0-80fpm
01Features & Build
-
Engine and Drive
- Briggs Vanguard engine configured for propane vapor draw
- Self-propelled transmission with Eaton Model 6 system
- Four-belt blade shaft drive

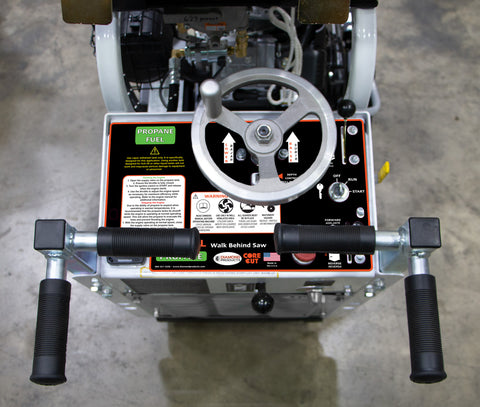

- Electric start with low oil alert and hour meter
-
Operational Design
- Horizontally-mounted 20 lb. propane tank
- Screw feed system for blade raising and lowering
- Self-aligning blade shaft bearings
- Lifting hook included for transport
- Battery isolator switch to prevent drain
- Blade mounting available on right or left side
02Specifications21
| Brand | Diamond Products |
|---|---|
| Model | CC1823BVXLP |
| Part Number | 5801427 |
| Catalog Number | 101228 |
| Series | CC1823BVXLP PROPANE WALK BEHIND SAW |
| Model # | CC1823BVXLP-20S |
| Engine Make/Model | Converted Briggs Vanguard |
| Engine Power | 23 HP |
| Blade Capacity | 20" |
| Weight (lbs.) | 485 |
| Max Depth of Cut with 14" Blade | 4-4/8" |
| Max Depth of Cut with 20" Blade | 7-5/8" |
| Blade Shaft RPM | 2600 |
| Blade Shaft Diameter | 1-1/4" |
| Arbor Size | 1" with single drive pin |
| Blade Shaft Drive | 4 belts |
| Blade Mounting | Right or left |
| Transmission | Eaton Model 6 |
| Drive Speed | 0-80 feet per minute |
| Fuel Tank Size | 20 pound |
| Wheel Dimension | 5" x 1-1/2" x 3/4" (Front) 6" x 1/-1/2" x 5/8" (Back) |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Related Products1
Other configurations and accessories published for this product.
04Downloads4
05Shipping & Ordering
This item ships at approximately 485 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
