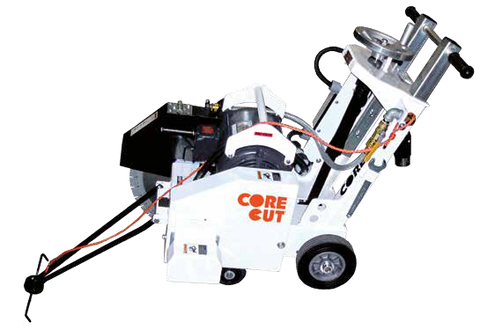

Diamond Products CC1500E Modular Saw - Part # 5801500, Cat # 19131
This electric walk-behind saw is designed for indoor cutting applications where exhaust ventilation is restricted. It features a modular design that allows the motor to be removed for easier transport and single-person operation.
- Blade Capacity20in
- Max Cut 14in4-5/8in
- Max Cut 18in6-1/2in
- Max Cut 20in7-1/2in
- Shaft RPM2,000RPM
01Features & Build
-
Operational Features
- Electric motor eliminates exhaust fumes for use in confined spaces
- Push-drive system for manual maneuverability

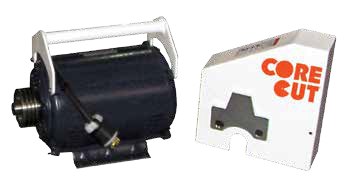

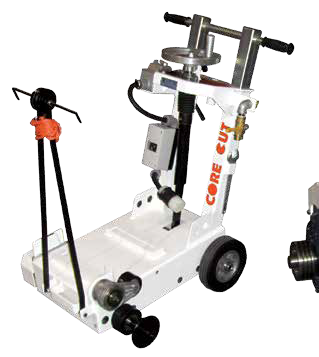

- Modular motor assembly allows for single-person operation in tight areas
- Aluminum frame construction reduces overall weight

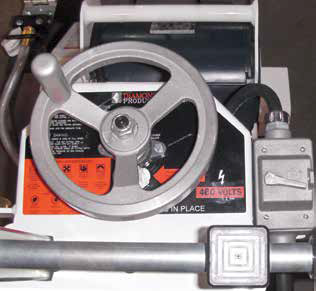

- Precision screw feed mechanism for depth control
- Heavy-duty handle design with adjustable bars
02Specifications16
| Brand | Diamond Products |
|---|---|
| Model | CC1500E |
| Part Number | 5801500 |
| Catalog Number | 19131 |
| Blade Capacity | 20" |
| Motor/Engine Power | 7.5 HP-3PH, 460V |
| Engine/Motor Make | Baldor® |
| Power Source | Electric |
| Maximum depth of cut with 14” blade | 4-5/8” |
| Maximum depth of cut with 18” blade | 6-1/2” |
| Maximum depth of cut with 20” blade | 7-1/2” |
| Blade shaft RPM | 2,000 |
| Blade shaft diameter | 1-1/4” |
| Arbor size | 1” with drive pin |
| Blade Raise/Lower | Precision screw feed |
| Handle Bars | Adjustable |
Specifications are supplied by the manufacturer and are subject to change without notice.
