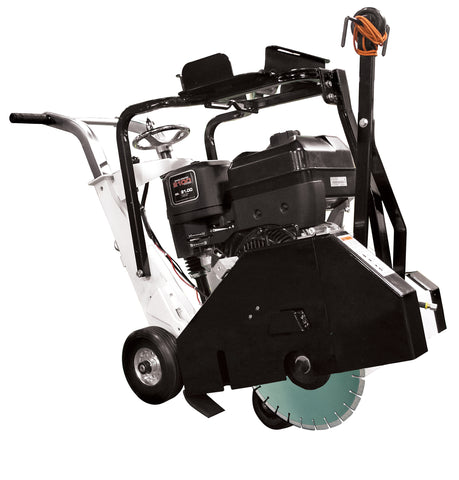

Diamond Products CC1200XL Small Walk Behind Saw 14” 420cc, 21 torque (lbs.-ft.) Briggs® ◊ - Part # 5801094, Cat # 32365
Part number: 5801094
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This walk-behind saw is designed for general concrete cutting applications using 14-inch or 18-inch blades. It features a precision screw feed mechanism for controlled depth adjustments up to 6-5/8 inches.
- Blade Capacity14-18in
- Max Cut 14in4-5/8in
- Max Cut 18in6-5/8in
- Blade RPM2,600RPM
- Arbor Size1in
01Features & Build
-
Operational Features
- Constructed for durability while remaining light enough for two-person transport.
- Equipped with a cyclone air filter on Honda engine models.
- Includes a built-in depth indicator for measurement accuracy.
- Features a slip-on blade guard and rigid, non-rattling handles.
- Configurable for left or right-hand sawing.
- Utilizes a single ribbed belt drive system.

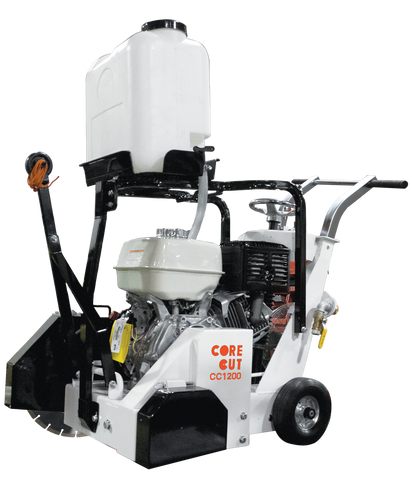

- Includes a lifting bale and provisions for an optional water tank.
02Specifications18
| Brand | Diamond Products |
|---|---|
| Model | CC1200XL |
| Part Number | 5801094 |
| Catalog Number | 32365 |
| Blade Capacity | 14” |
| Engine/Motor Model | 2100 |
| Motor/Engine Power | 420cc, 21 torque (lbs.-ft.) |
| Engine/Motor Make | Briggs® ◊ |
| Power Source | Gas |
| Maximum depth of cut with 14” blade | 4-5/8” |
| Maximum depth of cut with 18” blade | 6-5/8” |
| Blade shaft RPM | 2,600 |
| Blade shaft diameter | 1-1/4” |
| Arbor Size | 1” with single drive pin |
| Blade mounting | Right or left |

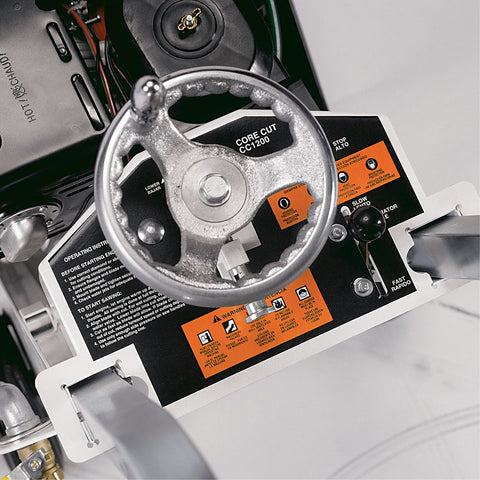

| Blade raise/lower | Precision screw feed |
| Handle bars | Adjustable |
| Depth indicator | Standard |
Specifications are supplied by the manufacturer and are subject to change without notice.
