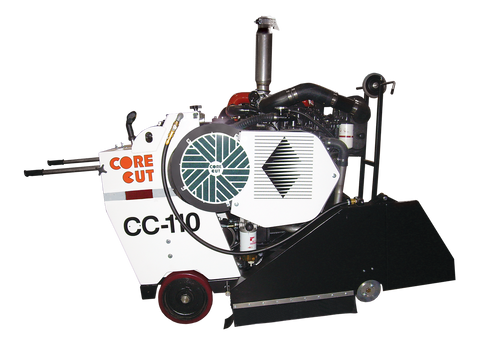

This walk-behind saw is designed for deep-cut concrete applications using blades ranging from 36 to 72 inches. It utilizes a 110 HP diesel engine to achieve cutting depths up to 32 inches.
- Blade Capacity36-72in
- Horsepower110HP
01Features & Build
-
Diesel Powered
-
Engine and Performance
- Charge air cooled engine reduces intake air temperature by 30 degrees.
- Equipped with the Cummins QSB3.3 Interim Tier IV diesel engine.
- Features a 2-stage air filter system and improved radiator protection.

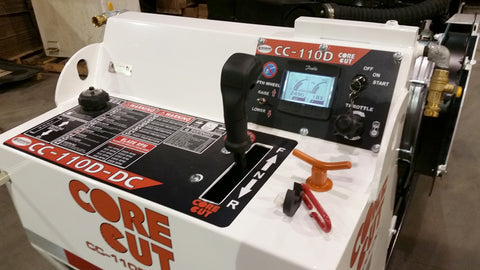

- Includes Cantrax engine control gauges.
-
Mechanical and Blade Systems
- Full skid plate protects belt and blade shaft bearings.
- Blade shaft bearings and jack shaft bearings are drilled and tapped.
- Hydraulic 5th wheel provides assistance for turning.
- Blade shaft bolt locks and an adjustable jack shaft assembly are standard.
- Electro-hydraulic pump manages blade raise and lower functions.
- Blade shaft drive utilizes 5-5VX belts.
02Specifications38
| Brand | Diamond Products |
|---|---|
| Model | CC110D |
| Part Number | 5801405 |
| Catalog Number | 60381 |
| Blade Capacity | 66" |
| Sawing Power Source | Diesel |
| Sawing Engine/Motor Make | Cummins® |
| Motor/Engine Power | 110 HP |
| Maximum depth of cut with 54” blade | 23-1/2” |
| Maximum depth of cut with 60” blade | 26-1/2” |
| Maximum depth of cut with 66” blade | 29-1/2” |
| Maximum depth of cut with 72” blade | 32” |
| Engine Manufacturer | Cummins® QSB3.3 Interim Tier IV |
| Maximum Horsepower | 110HP at 2,400 RPM |
| Blade shaft diameter | 2-1/2” |
| Blade shaft bearings | Self-aligning double concave roller |
| Blade shaft drive | 5-5VX belts |
| Arbor size | 1” w/6 bolts |
| Blade mounting | Right and left side |
| Blade raise & lower | Electro-hydraulic pump |
| Transmission | DPI |
| Fuel capacity | 9 gallons |
| Air Filter | 2-stage |
| Gauges | Cantrax engine control |
| Maximum depth of cut with 30” blade | 11-1/2” |
| Maximum depth of cut with 36” blade | 14-1/2” |
| Engine Manufacturer | Cummins® QSB3.3 Interim Tier IV |
| Maximum Horsepower | 110HP at 2,400 RPM |
| Blade shaft diameter | 2” |
| Blade shaft bearings | Self-aligning double roller |
| Blade shaft drive | 5-5VX belts |
| Arbor size | 1” ‘Louie arbor’ |
| Blade mounting | Right and left side |
| Blade raise & lower | Electro-hydraulic pump |
| Transmission | DPI |
| Fuel capacity | 9 gallons |
| Air Filter | 2-stage |
| Gauges | Cantrax engine control |
Specifications are supplied by the manufacturer and are subject to change without notice.
