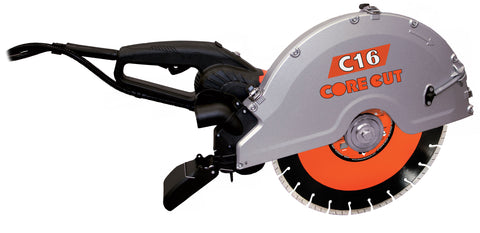

Diamond Products C16 Electric Hand Saw - Part # 5801605, Cat # 72378
This electric hand saw is designed for wet or dry cutting applications. It features a 16-inch blade capacity capable of reaching a maximum cutting depth of 6 inches.
- Blade Capacity16in
- Cutting Depth6in
- Weight17lbs
01Features & Build
-
Electric
-
Operational Features
- Supports both wet and dry cutting methods
- Includes overload protection with an integrated LED warning light
- Equipped with detachable guide rollers
- Features a spring-loaded splash guard for water spray containment
-
Design and Maintenance
- Ergonomic handle configuration for operator control
- Tool-free adjustment for blade guard angle
- Constructed with a lightweight magnesium blade guard
- Motor brushes are externally accessible for maintenance
- Water feed system includes adjustable flow, quick-release coupling, and durable hose
02Specifications15
| Brand | Diamond Products |
|---|---|
| Model | C16 |
| Part Number | 5801605 |
| Catalog Number | 72378 |
| Power Input | 25A |
| RPM | 3900 |
| Arbor | 1” |
| Max Cutting Depth | 6” |
| Cut Direction | Down |
| Weight | 17 lbs (18 lbs. with guide rollers) |
| Engine/Motor Make | Core Bore |
| Motor/Engine Power | 15A/120V |
| Power Source | Electric |
| Power Source | Electric |
| Blade Capacity | 16” |
Specifications are supplied by the manufacturer and are subject to change without notice.
04Shipping & Ordering
This item ships at approximately 17 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need a volume price, a fleet configuration, or help matching this product to your application? Call us and we’ll spec it with you.
