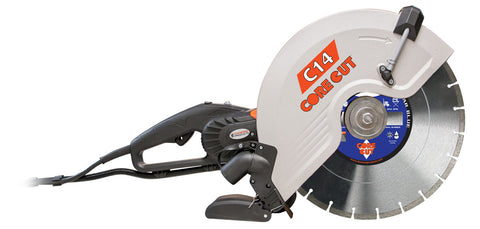

Diamond Products C14 & C14PRO Electric Hand Held Saw - Part # 5801601, Cat # 48975
This electric hand-held saw is designed for wet or dry cutting applications. It features a 14-inch blade capacity and a maximum cutting depth of 5 inches.
- Blade Capacity14in
- Cutting Depth5in
- Weight17lbs
- Voltage120V
01Features & Build
-
Electric
-
Operational Features
- Supports both wet and dry cutting methods
- Integrated overload protection with operator-visible LED load warning

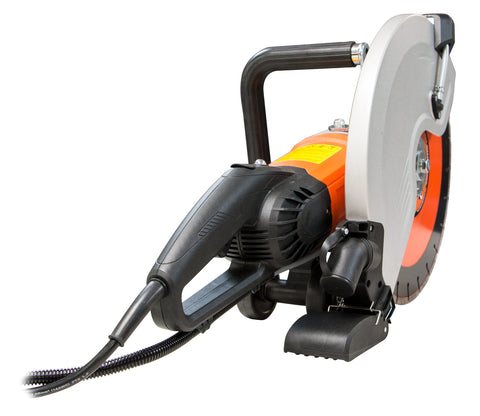

- Includes detachable guide rollers
- Equipped with a splash guard for water spray containment
- Ergonomic handle design for improved control
- Tool-free adjustment for blade guard angle
- Constructed with a lightweight magnesium blade guard
- Features externally accessible motor brushes
- Includes a water feed system with adjustable flow, quick-release coupling, and durable hose
02Specifications13
| Brand | Diamond Products |
|---|---|
| Model | C14 |
| Part Number | 5801601 |
| Catalog Number | 48975 |
| Power Input | 15A (C14), 25A (C14PRO) |
| Voltage | 120V (both models) |
| RPM | 4500 |
| Arbor | 1 |
| Max Cutting Depth | 5 |
| Cut Direction | Down |
| Weight | 17 lbs (18 lbs. with guide rollers) |
| Motor/Engine Power | 15A/120V |
| Power Source | Electric |
Specifications are supplied by the manufacturer and are subject to change without notice.
