Diamond Products BG249DT4 Groover - Part # BG24DT4, Cat # 105126
Part number: BG24DT4
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times

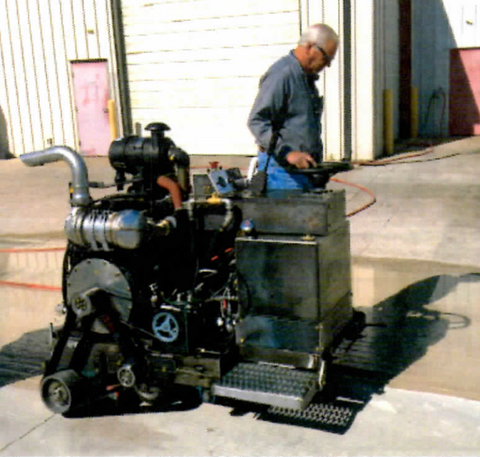

This stand-on grooving machine is designed for agricultural barn floor applications. It features a 75 HP liquid-cooled diesel engine and a 24-inch cutting width.
- Horsepower75HP
- Cutting Width24in
- Blade Capacity12 or 14in
- Weight3500lbs
01Features & Build
-
Diesel Powered
-
Operational Features
- Hydrostatic ground drive provides precise speed control.
- Joystick-integrated switch controls blade shaft raising and lowering.
- Equipped with a three-stage engine air intake filter.
- Includes dual lights for low-light operation.
- Supports both left and right side operator positions.
- Features an integrated fuel gauge.
- Digital engine control panel displays tachometer and hour meter data.
02Specifications18
| Brand | Diamond Products |
|---|---|
| Model | BG249DT4 |
| Part Number | BG24DT4 |
| Catalog Number | 105126 |
| Engine | Deutz 2.2L, 75HP Tier 4-Final, LIquid-Cooled, Turbo Charged, Common Rail Fuel Injeciton System, 4 Cylinder Diesel Engin, Maximum 2600 RPM |
| Dimensions | Length: 64-1/2" (163.83cm), Width: 48-5/8" (123.51cm), Height: 59-1/4" (150.49cm) |
| Weight | 3500 lbs. estimated |
| Fuel Capacity | 20 gallons |
| Blade Shaft | 5" (12.7cm), Diameter with key ways |
| Blade Capacity Diameter | 12" (30.48cm) or 14" (35.56cm) |
| Blade Shaft RPM | Max 1300 RPM |
| Cutting Width | 24: (60.96cm) |
| Blade Shaft Drive | Belt driven |
| Hydraulics | Electric over hydraulic adjustable blade raise/lower |
| Ground Drive | Belt driven hydrostatic ground drive pump |
| Machine Controls | Control lever connected to transmission controls the ground drive and machine rasie/lower functions |
| Instrumentation | Digital engine panel |
| Electrical | 12 volt electrical system |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads1
04Shipping & Ordering
This item ships at approximately 3,500 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
