A versatile choice for your work
- Professional fine finishing applications
- High-precision wood and metal coating
- Projects requiring superior atomization quality
- Operations utilizing water-based or aggressive coatings
CA Technologies H20-CPR-G-PPS H2O CPR-G CAT PACK 1.3,1.5,1.7 PPS
Fine Finishing
CA Technologies H2O-CPR-G Compliant HVLP Gravity Feed — High-Efficiency Precision Spray Performance
The H2O-CPR-G spray gun is engineered to bridge the gap between HVLP transfer efficiency and the rapid, high-quality output of conventional air spray systems. This model provides significant material savings while maintaining a superior finish. The H2O-CPR-G CAT PACK includes 1.3, 1.5, and 1.7 needle/nozzle sets and is compatible with the PPS system for streamlined operation.
0.8, 2.2 mmNozzle Size (mm)
0, 100 gal/minAir Consumption Range (gal/min)
20 ozWeight (oz)
Genuine CA Technologies equipment

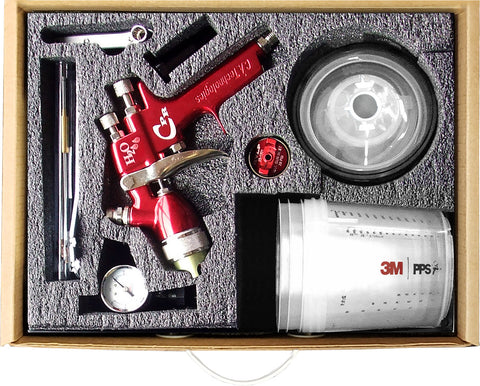

Includes Box set: H2O-CPR-G 1.3 mm Ø nozzle size, as well as other nozzle sizes (1.5 and 1.7 mm Ø), 3M PPS™ system with 3 lids and liners
Country of origin: USA
Ready to set up and start working
- Box set: H2O-CPR-G 1.3 mm Ø nozzle size
- as well as other nozzle sizes (1.5 and 1.7 mm Ø)
- 3M PPS™ system with 3 lids and liners
- second air cap HVLP
- tools
- cleaning brush
- manual instruction
- Case: Includes H2O-CPR-G 1.3 mm Ø
- additional nozzle sizes (1.5 and 1.7 mm Ø)
- gravity-feed cup or 3M PPS™ system with 3 lids and liners
- second air cap HVLP
- tool
- cleaning brush
- manual instruction
- mini air regulator and case
Always verify coating requirements and compatibility before use.
Performance Features
Designed to reduce downtime and simplify maintenance
Achieves a transfer efficiency rating of 65% or higher.
Offers precise control over spray pattern geometry, ranging from flat to round, with adjustable needle settings for accurate material flow regulation across all coating types.
Delivers exceptional atomization performance through a specialized 12-point plenum nozzle configuration.
Constructed with stainless steel for all wetted components, ensuring full compatibility with water-based paints and chemically aggressive media.
Product detailsTechnical Specifications
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Nozzle Size (mm) | 0.8, 2.2 mm |
| Air Consumption Range (gal/min) | 0, 100 gal/min |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating |
| Material Wetted Parts | Stainless steel |
| Thread type Pilot air connection | 1/4" |
| Control Air Connection Thread Sex | M |
| Scope of delivery | Box set: H2O-CPR-G 1.3 mm Ø nozzle size, as well as other nozzle sizes (1.5 and 1.7 mm Ø), 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes H2O-CPR-G 1.3 mm Ø, additional nozzle sizes (1.5 and 1.7 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini air regulator and case |
Package detailsShipping Information
| Weight | 5.99 lb (2716 g) |
| Dimensions | 35.2 x 40.6 x 11.4 cm (L x W x H) |
| Country of Origin | USA |
| Customs Tariff Number | 8424.20.9000 |
