The H2O-CPR-G spray gun is engineered to bridge the gap between HVLP transfer efficiency and the rapid application speeds typical of conventional air spray systems. This model provides superior finish quality while maximizing material savings through an optimized coating process. The H2O-CPR-G CAT PACK includes 1.3, 1.5, and 1.7 nozzle sets to accommodate various finishing requirements.
Always verify coating requirements and compatibility before use.
Achieves a transfer efficiency rating of 65% or higher for reduced material waste.
Offers precise control over spray pattern geometry, ranging from flat to round, with adjustable needle settings for accurate material flow regulation.
Utilizes a 12-point plenum nozzle configuration to deliver exceptional atomization performance.
Constructed with stainless steel for all wetted components, ensuring compatibility with water-based paints and chemically aggressive coating media.
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Nozzle Size (mm) | 0.8, 2.2 mm |
| Air Consumption Range (gal/min) | 0, 100 gal/min |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating |
| Material Wetted Parts | Stainless steel |
| Thread type Pilot air connection | 1/4" |
| Control Air Connection Thread Sex | M |

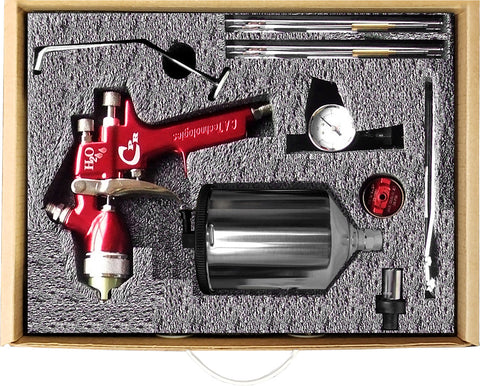

| Scope of delivery | Box set: H2O-CPR-G 1.3 mm Ø nozzle size, as well as other nozzle sizes (1.5 and 1.7 mm Ø), 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes H2O-CPR-G 1.3 mm Ø, additional nozzle sizes (1.5 and 1.7 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini air regulator and case |
| Weight | 0.50 lb (227 g) |
| Country of Origin | USA |
| Customs Tariff Number | 8424.20.9000 |
