The H2O-CPR-G gravity feed spray gun is engineered to bridge the gap between high-transfer efficiency HVLP technology and the rapid, high-quality output of conventional air spray systems. This model provides significant material savings while maintaining a professional-grade finish for demanding applications.
The H2O-CPR-G E-PACK includes 1.3, 1.5, and 1.7 nozzle sets and is compatible with the PPS system for streamlined workflow.
Always verify coating requirements and compatibility before use.
Delivers a transfer efficiency rating of 65% or higher to reduce material waste.
Offers versatile control over spray geometry, allowing for adjustments from a flat fan to a round pattern, alongside precise needle-based material flow regulation and stainless steel construction for universal coating compatibility.
Utilizes a 12-point plenum nozzle configuration to achieve exceptional atomization consistency.
Constructed with stainless steel wetted components to ensure durability and reliable performance when handling water-based paints and aggressive chemical media.
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Nozzle Size (mm) | 0.8, 2.2 mm |
| Air Consumption Range (gal/min) | 0, 100 gal/min |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating |
| Material Wetted Parts | Stainless steel |
| Thread type Pilot air connection | 1/4" |
| Control Air Connection Thread Sex | M |

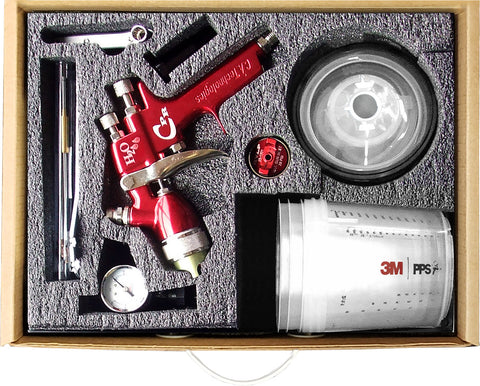

| Scope of delivery | Box set: H2O-CPR-G 1.3 mm Ø nozzle size, as well as other nozzle sizes (1.5 and 1.7 mm Ø), 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes H2O-CPR-G 1.3 mm Ø, additional nozzle sizes (1.5 and 1.7 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini air regulator and case |
| Weight | 0.50 lb (227 g) |
