A versatile choice for your work
- Professional woodworkers and cabinet makers
- Fine furniture finishing applications
- Automotive refinishing and custom coatings
- Precision industrial manufacturing

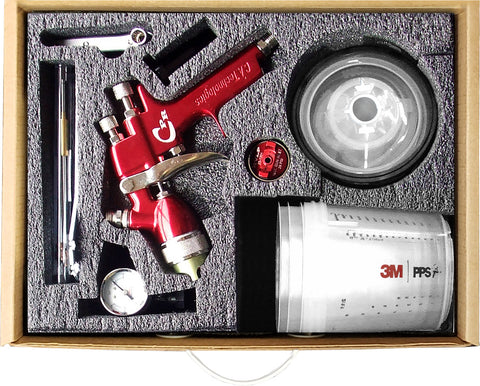

CA Technologies CPR-G-W-PPS CPR-G WOOD PACK 1.0,1.3,1.5,1.7 PPS
Fine Finishing
CA Technologies CPR-G Compliant HVLP Gravity Feed — Precision HVLP Fine Finishing Performance
The CPR-G spray gun is engineered to bridge the gap between HVLP transfer efficiency and the rapid application speeds typically associated with conventional air spray systems. This model provides a high-quality finish while maximizing material savings through an efficient coating process. The CPR-G WOOD PACK includes 1.0, 1.3, 1.5, and 1.7 nozzle sets and is compatible with the PPS system.
0.8, 2.2 mmNozzle Size (mm)
0, 100 gal/minAir Consumption Range (gal/min)
20 ozWeight (oz)
Genuine CA Technologies equipment
Includes Box set: CPR-G 1.3 mm Ø nozzle size, as well as other nozzle sizes (1.5 and 1.7 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners
Country of origin: USA
Ready to set up and start working
- Box set: CPR-G 1.3 mm Ø nozzle size
- as well as other nozzle sizes (1.5 and 1.7 mm Ø)
- gravity-feed cup or 3M PPS™ system with 3 lids and liners
- second air cap HVLP
- tools
- cleaning brush
- manual instruction
- Case: Includes CPR-G 1.3 mm Ø
- additional nozzle sizes (1.5 and 1.7 mm Ø)
- gravity-feed cup or 3M PPS™ system with 3 lids and liners
- second air cap HVLP
- tool
- cleaning brush
- manual instruction
- mini air regulator and case
Always verify coating requirements and compatibility before use.
Performance Features
Designed to reduce downtime and simplify maintenance
Achieves a transfer efficiency rating of 65% or higher.
Offers versatile control over spray patterns, ranging from flat to round, with adjustable needle settings for precise material flow; the stainless steel fluid path ensures compatibility with a wide range of coating materials.
Delivers superior atomization performance utilizing a specialized 12-point plenum nozzle configuration.
Product detailsTechnical Specifications
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Airspray - HVLP-Plus, Manual coating |
| Nozzle Size (mm) | 0.8, 2.2 mm |
| Air Consumption Range (gal/min) | 0, 100 gal/min |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating |
| Material Wetted Parts | Stainless steel |
| Atomizer Air Connection Thread Type | 1/4" |
| Atomizer Air Connection Thread Sex | M |
| Scope of delivery | Box set: CPR-G 1.3 mm Ø nozzle size, as well as other nozzle sizes (1.5 and 1.7 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes CPR-G 1.3 mm Ø, additional nozzle sizes (1.5 and 1.7 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini air regulator and case |
Package detailsShipping Information
| Weight | 5.87 lb (2662 g) |
| Dimensions | 35.5 x 40.8 x 11.1 cm (L x W x H) |
| Country of Origin | USA |
| Customs Tariff Number | 8424.90.9080 |
