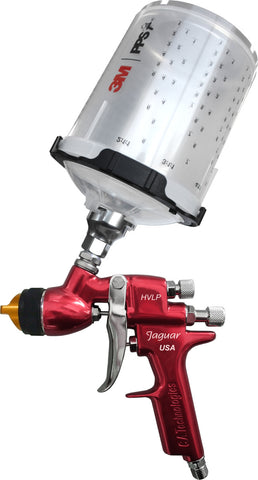

The Jaguar 100 Series HVLP gravity feed spray gun is engineered for maximum versatility across a wide range of finishing environments. By swapping air caps and fluid nozzles, this unit adapts seamlessly to onsite projects utilizing low CFM compressors or high-production shop settings requiring superior atomization of heavy coatings. This package includes 1.0, 1.4, 1.5, and 1.7 nozzle sets and PPS compatibility.
Low CFM air cap: 21-1090 (requires 6 CFM @ 15 PSI)
Always verify coating requirements and compatibility before use.
Achieves a transfer efficiency rating of 65% or higher.
Provides precise control over spray pattern geometry, ranging from flat to round, while the needle adjustment allows for exact material flow regulation; all fluid-contact components are constructed from stainless steel to ensure compatibility with diverse coating types.
Optimized for minimal air consumption when paired with compatible air caps, making it an ideal solution for operation with low CFM air compressors.
| Product Type | Airspray manual gun |
| Application Technique | Airspray - HVLP, Manual coating |
| Nozzle Size (mm) | 0.8, 1.7 mm |
| Weight (oz) | 20 oz |
| Application area | Metal coating, Wood coating |
| Material Wetted Parts | Stainless steel |
| Atomizer Air Connection Thread Type | 1/4" |
| Atomizer Air Connection Thread Sex | M |
| Scope of delivery | Gun-only set: Manual airspray gun with gravity-feed cup, tool, cleaning brush and manual instruction, Box set: J100H, additional nozzle sizes (Wood - 1.0, 1.4, 1.5 and 1.7 mm Ø) (Auto - 1.3, 1.5, 1.9 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tools, cleaning brush, manual instruction, Case: Includes J100H, additional nozzle sizes (Wood - 1.0, 1.4, 1.5 and 1.7 mm Ø) (Auto - 1.3, 1.5, 1.9 mm Ø), gravity-feed cup or 3M PPS™ system with 3 lids and liners, second air cap HVLP, tool, cleaning brush, manual instruction, mini air regulator and |
| Weight | 5.82 lb (2642 g) |
| Dimensions | 38 x 44.8 x 11.9 cm (L x W x H) |
| Country of Origin | USA |
| Customs Tariff Number | 8424.90.9080 |
