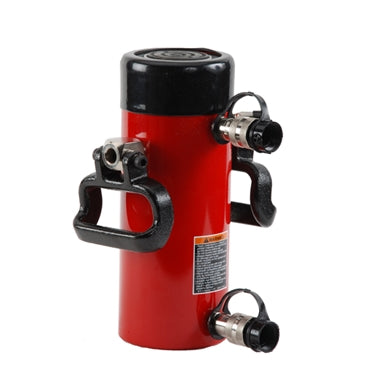

BVA | HD5506, 55 Ton 6" Stroke, Double Acting Cylinder
GENERAL PURPOSE DOUBLE ACTING CYLINDER
BVA Hydraulics
Model: HD5506
Features:
- Rod wiper seals out dirt & contamination
- High strength steel construction from gun drilled solid bar
- High flow 3/8” NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Collapsed Height |
Oil Capacity (in³) Push |
Oil Capacity (in³) Pull |
Weight (Lbs) |
| 55 |
6.18 |
HD5506 | 13.03 |
67.93 |
19.74 |
70.5 |
