t-series t7500 pump

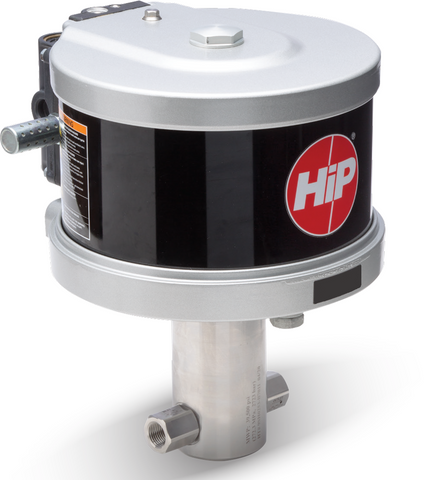

HiP | T7519 T-Series Air-Driven Pump | 19,500 PSI

  • $2,759.00


HiP T7500 SERIES PUMP

Features
  • 6 in. air cylinder
  • 2.5 inch pump stroke
  • Inlet air pressure 15 psi - 100 psi (1 to 7 bar)
  • Four different plunger seal materials; NBR , FKM , FFKM , EPR
  • *80 CPM recommended for optimal pump seal life

Technical Specifications:

 Part Number Ratio Seal Material

Max Working

Pressure

psi (Mpa, bar)

Max Pneumatic

Inlet Pressure

psi (Mpa, bar)



Displacement

per Stroke

in3 (ml)

T7519-195-NBR-00 195:1 NBR

19500

(135, 1350)

100 (0.69, 6.9) 0.56 (9.2)
T7519-195-FKM-00 195:1 FKM

19500

(135, 1350)

100 (0.69, 6.9) 0.56 (9.2)
T7519-195-FFKM-00 195:1 FFKM

19500

(135, 1350)

100 (0.69, 6.9) 0.56 (9.2)
T7519-195-EPR-00 195:1 EPR

19500

(135, 1350)

100 (0.69, 6.9) 0.56 (9.2)
