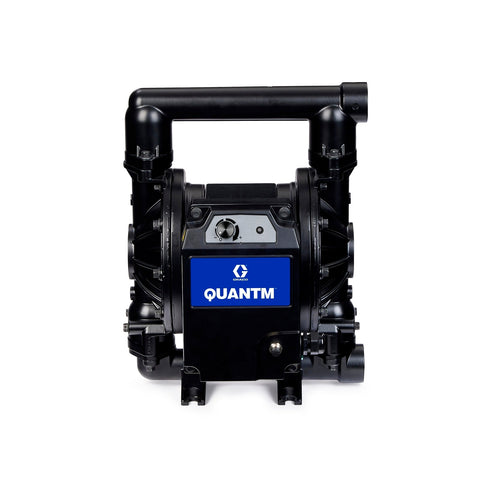

Graco | TE80-0136 QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, SD Ball, PS Diaphragm
Graco
Model: TE80-0136
The QUANTM electric pump offers a revolutionary motor design for reduced operational costs and enhanced reliability, ensuring continuous production. With various fluid path options and materials, it is suitable for most fluid applications. It serves as a dependable replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides consistent flow and is the only electric diaphragm pump capable of stalling under pressure, preventing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and superior dependability, contributing to energy savings and sustainability goals. Consider converting to a QUANTM electric pump to optimize your pumping strategy and improve profitability.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump provides up to 8x more continuous torque at low speeds than conventional motors, making it an energy-efficient solution for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime and features a plug-and-play design for easy integration into existing production lines without additional investment or infrastructure changes. Not suitable for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid return on investment.
- Quiet operation reduces plant noise levels, improving employee safety and health.
- Smart pump control offers more precise flow set points and integrated I/O capabilities.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 3Ph motor with 15 ft flying leads.
- CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include 316 stainless steel seat, 440C stainless steel ball, PTFE/Santoprene 2-piece diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946687101 |
| Division | PRO |
| Height | 32.5 IN | 82.550 CM |
| Length | 32.5 IN | 82.550 CM |
| Width | 19.5 IN | 49.530 CM |
| Volume | 11.9 FT3 | 0.337 M3 |
| Shipping Weight | 122 LBS | 55.338 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC3SSSDPSPTA100 |
| Weight (kg) | 32.2 |
