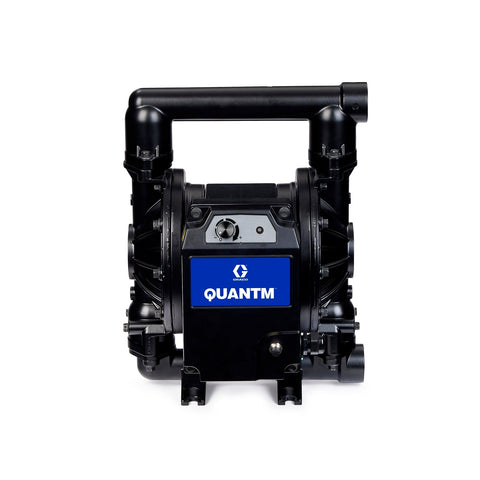

Graco | TE80-0042 QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, SD Ball, SP Diaphragm
Graco
Model: TE80-0042
QUANTM is an electric pump designed to reduce operational costs and ensure production line reliability. It features multiple fluid path options and materials of construction, making it suitable for most fluid applications. QUANTM can serve as a direct replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow. It is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime caused by clogged lines or closed valves. QUANTM is engineered for quieter, more efficient, and ultra-dependable operation, offering energy savings that support sustainability goals. Consider converting to a QUANTM electric pump to optimize your pump strategy and improve profitability.
The all-aluminum fluid section offers abrasion resistance and mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is energy-efficient and suitable for sump evacuation, petroleum product evacuation (new and waste oils), and solvent evacuation. This pump enhances reliability to minimize downtime. Its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes. Not for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replaces existing air-operated pumps with electric pump technology that stalls under pressure and includes the AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieves up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a rapid investment payback.
- Quiet operation reduces plant noise and improves employee safety and health.
- Smart pump control offers more accurate flow set points and built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 3Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include a 316 stainless steel seat, 440C stainless steel ball, Santoprene diaphragm, and PTFE manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946686166 |
| Division | PRO |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC1SSSDSPPTA100 |
