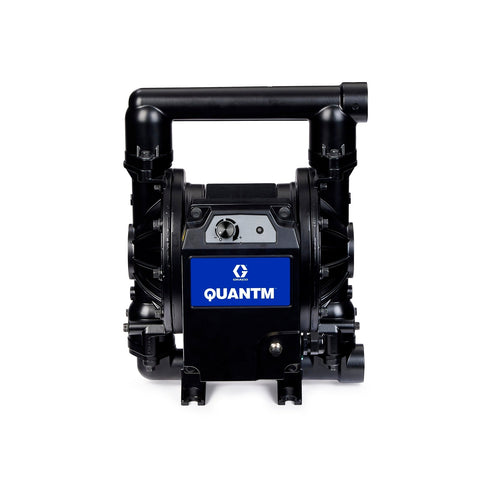

Model: TE80-0022
The QUANTM electric pump features a revolutionary electric motor design that reduces operational costs and ensures production line reliability. With multiple fluid path options and materials of construction, QUANTM is suitable for most fluid applications. It serves as a reliable drop-in replacement for less efficient pneumatic pumps or for new installations. Its self-priming, seal-less design provides smooth, steady flow. This is the only electric diaphragm pump on the market that stalls under pressure, reducing downtime from clogged lines or closed valves. The QUANTM is engineered for quieter operation, increased efficiency, and enhanced dependability, offering energy savings that support sustainability goals. Consider upgrading your pump strategy and improving your bottom line with a QUANTM electric pump.
The all-aluminum fluid section is designed for abrasion resistance and mild corrosion resistance. This general-purpose electric pump offers up to 8x more continuous torque at low speeds than conventional motors. It is an energy-saving solution ideal for sump evacuation, evacuation of petroleum products (new and waste oils), and evacuation of solvents. This pump delivers high reliability to minimize downtime. Its plug-and-play design allows for easy integration into production lines without additional investment or infrastructure changes. Not for use with halogenated hydrocarbons.
-
Revolutionary Design
- Replace existing air-operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature.
- A compact and efficient electric drive eliminates the gearbox, offering a footprint comparable to a pneumatic diaphragm pump.
- Achieve up to 80% reduction in energy consumption compared to pneumatic pumps, lowering operating costs and providing a quick investment payback.
- Quiet operation reduces plant noise and improves employee safety and health.
- Smart pump control offers more accurate flow set points and built-in I/O.
-
Efficient Electric Motor
- Powder-coated aluminum electric drive.
- 240 VAC 3Ph motor with a 15 ft cord and NEMA L15-20 plug.
- Non-hazardous.
-
Materials of Construction
- Aluminum fluid section with NPT end port.
- Internal components include TPE (Hytrel) seat, TPE (Hytrel) ball, TPE (Hytrel) diaphragm, and TPE (Hytrel) manifold o-ring.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946685961 |
| Division | PRO |
| Height | 34 IN | 86.360 CM |
| Length | 32 IN | 81.280 CM |
| Width | 18 IN | 45.720 CM |
| Volume | 11.318 FT3 | 0.320 M3 |
| Shipping Weight | 113 LBS | 51.256 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (L/min) | 303 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.19 |
| Maximum Solid Size (mm) | 4.8 |
| Model | QUANTM |
| Overall Height (in) | 19.6 |
| Series | i80 |
| Maximum Ambient Temperature (°F) | 104 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Minimum Fluid Operating Temperature (°C) | -29 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Minimum Fluid Operating Temperature (°F) | -20 |
| Fluid Section | Aluminum, End Port, NPT |
| Maximum Ambient Temperature (°C) | 40 |
| Cord Length (m) | 4.57 |
| Cord Length (ft) | 15 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| configuration_code | QTD-ALFC1TPTPTP--A100 |
| Weight (kg) | 32.2 |
