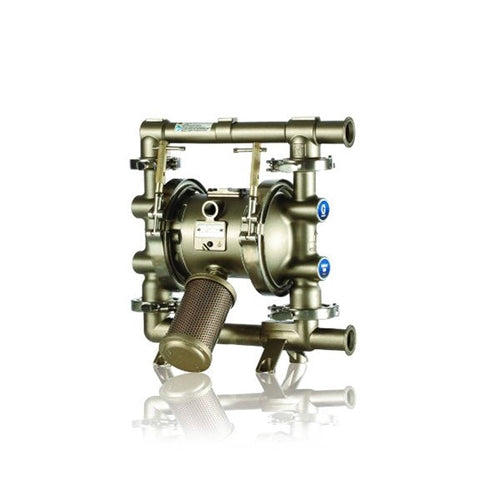

Graco | FD7111 SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms
Graco
Model: FD7111
Graco's SaniForce 1040 is a 1-inch air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It delivers flow rates up to 41 gpm and features a quick knock-down design for simplified cleaning, contributing to a low cost of ownership.
This pump is suitable for the food processing and personal care industries. It is commonly used for high-volume evacuation of liquid concentrates from storage containers and for repackaging fluids from original containers into smaller ones. It can handle products such as flavorings, purees, sauces, and other low to medium viscosity materials.
- 1-inch sanitary pump with a maximum flow rate of 41 gpm (155 lpm) and a maximum pressure of 120 psi (8 bar).
- The seal-less diaphragm design prevents leaks and failures caused by the pump running dry.
- Graco double diaphragm pumps are designed to stall under pressure, preventing failures due to blocked lines or closed valves.
- Externally serviceable air valves provide high efficiency and minimize downtime.
- Includes DIN inlet and outlet connections.
- Constructed with 316 stainless steel for wetted parts.
- All fluid contact materials comply with FDA regulations and United States Code of Federal Regulations (CFR) Title 21.
- Capable of pumping solids up to 0.125 inches (3.2 mm).
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955677852 |
| Division | PRO |
| Height | 18 IN | 45.720 CM |
| Length | 16.8 IN | 42.672 CM |
| Width | 9.6 IN | 24.384 CM |
| Volume | 1.68 FT3 | 0.048 M3 |
| Shipping Weight | 62.5 LBS | 28.350 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| For Use With | Food and Personal Care |
| Maximum Air Consumption (SCFM) | 50 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 256 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.32 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.2 |
| Model | SaniForce |
| Overall Height (in) | 16.1 |
| Series | 1040 FG |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Surface Finish | 125 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| fluid_passage_size_cm | 2.54 |
| configuration_code | 1040FG-PS01AS14SSPTPTPT21 |
