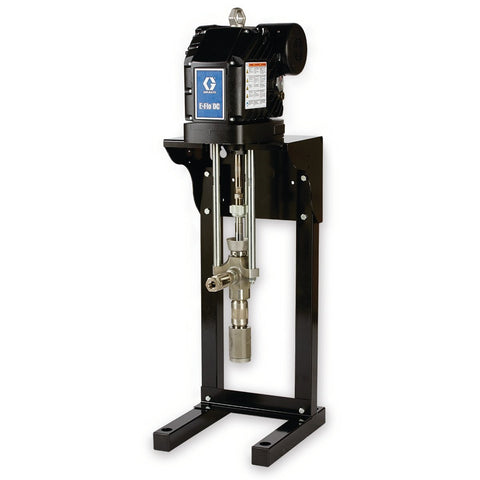

Graco | ES8841 E-Flo DC 2-Ball Electric Supply Pump, 180cc Lower, 2 HP Motor, Advanced, ATEX/IECEx/TIIS/KCS, Xtreme Lower, Stand
Graco
Model: ES8841
This dual-control electric supply pump features a durable two-ball lower, suitable for applications demanding high pressure up to 3000 psi (206 bar). The advanced control module includes Intelligent Paint Kitchen (IPK) compatibility for optimized pump control.
- The pump offers two operating modes: constant pressure or constant flow rate.
- Integrated runaway protection prevents premature wear and costly material loss.
- The electric motor operates 15 to 20 dBA quieter than comparable pneumatic motors.
- Minimal pulsation during changeover ensures a more consistent finish.
- Integrated runaway protection safeguards your pump from premature wear and prevents significant material loss.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652346357 |
| Division | IPD |
| Height | 0 IN | 0.000 CM |
| Length | 0 IN | 0.000 CM |
| Width | 0 IN | 0.000 CM |
| Volume | 0 FT3 | 0.000 M3 |
| Shipping Weight | 0 LBS | 0.000 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| For Use With | E-Flo DC Motor |
| Includes | Advanced Controls, Stand |
| Input Voltage (V ac) | 200-250 |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (L/min) | 3.6 |
| Maximum Input Amperage (A) | 20 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (bar) | 168 |
| Maximum Working Pressure (kPa) | 16800 |
| Maximum Working Pressure (psi) | 2430 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Model | E-Flo |
| Portable | Non-Portable |
| Power Rating (HP) | 2 |
| Series | DC 2-Ball |
| Maximum Working Pressure (MPa) | 16.8 |
