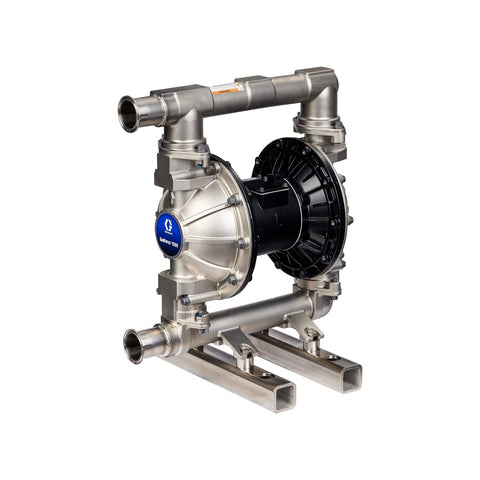

Graco | 26D635 SaniForce 1050 Beverage Pump, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms
Graco
Model: 26D635
The SaniForce Beverage Pumps feature a straightforward, serviceable design and high-quality construction, ensuring consistent flow and efficient operation for beverage transfer in wineries, breweries, and distilleries. These pumps are an extension of Graco's established air-operated double diaphragm pump technology, providing exceptional reliability and durable performance.
The 1050 beverage pump offers high performance with flow rates near 40 gpm and pressures up to 120 psi. It can be mounted on a cart for increased flexibility, allowing for easy material transfer throughout your facility to meet production demands efficiently and reliably.
-
Hygienic Design
- 1.5 in (38mm) Tri-clamp fluid connections
- All fluid contact components are FDA compliant
- Internal components include stainless steel seats, polychloroprene weighted balls, Santoprene diaphragms, and PTFE o-rings
- EN 2.1 material certification
-
Strong Performance
- Flow rates up to 40 gpm (155 lpm)
- Fluid pressure to 120 psi (8.27 bar, 0.83 Mpa)
- Handles solids and abrasive materials
- Shear sensitive for safe transfer
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946321159 |
| Division | PRO |
| Height | 31.5 IN | 80.010 CM |
| Length | 24.75 IN | 62.865 CM |
| Width | 19 IN | 48.260 CM |
| Volume | 8.565 FT3 | 0.243 M3 |
| Shipping Weight | 80 LBS | 36.287 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 50 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 256 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.32 |
| Maximum Solid Size (in) | 1/8 |
| Maximum Solid Size (mm) | 3.2 |
| Model | SaniForce |
| Overall Height (in) | 15.48 |
| Series | 1050 BV |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Fluid Operating Temperature (°C) | 80 |
| Minimum Fluid Operating Temperature (°C) | -10 |
| Maximum Fluid Operating Temperature (°F) | 176 |
| Minimum Fluid Operating Temperature (°F) | 14 |
| Surface Finish | 125 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Tri-Clamp Connection Size | 1.5-inch |
| fluid_passage_size_cm | 2.54 |
| configuration_code | 1050FG-PA01AS16SSCWSP |
