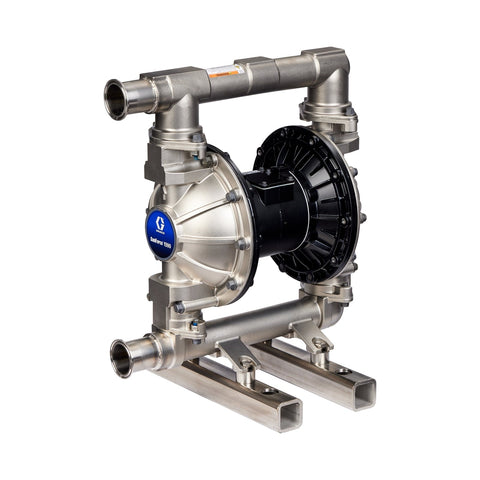

Graco | 26D631 SaniForce 1590 Beverage Pump, 1.5" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, CW Balls, SP Diaphragms
Graco
Model: 26D631
The SaniForce Beverage Pumps feature a straightforward, serviceable design and high-quality construction for consistent flow and efficient operation in wineries, breweries, distilleries, and other beverage transfer applications. These pumps build upon Graco's established air-operated double diaphragm pump technology, ensuring exceptional reliability and durable performance.
The 1590 beverage pump offers high performance with flow rates near 100 gpm and pressures up to 120 psi. It can be mounted to a cart for increased flexibility, allowing for easy material transfer throughout your facility to meet production demands efficiently and reliably.
-
Hygienic Design
- 2 in (51mm) Tri-clamp fluid connections
- All fluid contact components are FDA compliant
- Internal components include stainless steel seats, polychloroprene weighted balls, Santoprene diaphragms, and PTFE o-rings
- EN 2.1 material certification
-
Strong Performance
- Flow rates of 100 gpm (378 lpm)
- Fluid pressure to 120 psi (8.27 bar, 0.83 Mpa)
- Handles solids and abrasive materials
- Shear sensitive for safe transfer
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 769946321142 |
| Division | PRO |
| Height | 31.5 IN | 80.010 CM |
| Length | 24.5 IN | 62.230 CM |
| Width | 19 IN | 48.260 CM |
| Volume | 8.478 FT3 | 0.240 M3 |
| Shipping Weight | 115 LBS | 52.163 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| For Use With | Food and Personal Care |
| Maximum Air Consumption (SCFM) | 125 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 200 |
| Maximum Flow Rate (L/min) | 379 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (cm) | 0.48 |
| Maximum Solid Size (in) | 0.1875 |
| Maximum Solid Size (mm) | 4.8 |
| Model | SaniForce |
| Overall Height (in) | 21.76 |
| Series | 1590 BV |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Fluid Operating Temperature (°C) | 80 |
| Minimum Fluid Operating Temperature (°C) | -10 |
| Maximum Fluid Operating Temperature (°F) | 176 |
| Minimum Fluid Operating Temperature (°F) | 14 |
| Surface Finish | 125 Ra |
| compressor_required | Yes |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Tri-Clamp Connection Size | 2-inch |
| fluid_passage_size_cm | 3.8 |
| configuration_code | 1590FG-PA01AS16SSCWSP |
