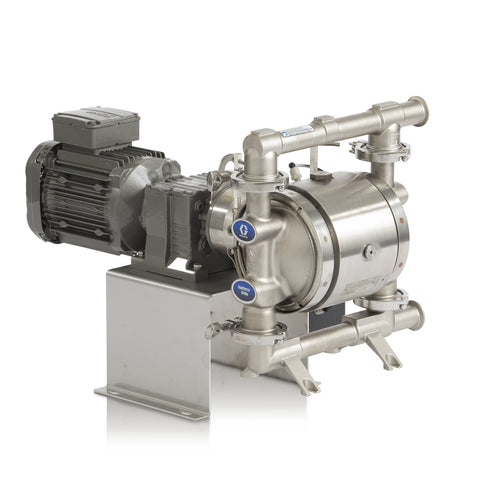

Graco | 24Y579 SaniForce 1040e S/S EODD Pump with Al Center, S/S Seats, EPDM O-Rings, Santoprene Balls, Santoprene Diaphragm & 1.5 in Sanitary Flange
Graco
Model: 24Y579
The SaniForce 1040e combines the advantages of a traditional air-operated diaphragm pump, such as self-priming, stalling under pressure, and extended diaphragm life, with the benefits of an electric pump, including energy cost savings, reduced pulsation, and enhanced pump control.
This 1-inch (25.4 mm) air-operated double diaphragm sanitary pump offers flow rates up to 40 gpm (151 lpm), making it suitable for food-related applications.
- Low pulsation provides a smooth flow, making it ideal for applications requiring consistent output. It is 5 times more efficient than a standard air-operated diaphragm pump.
- Patent-pending technology allows the pump to stall under pressure, preventing failures caused by clogged lines or closed valves.
- The energy-efficient electric drive reduces energy consumption by up to 5 times compared to traditional air-operated diaphragm pumps.
- Operates with less noise disturbance, producing less than 70 dBa, which is quieter than an AODD pump.
- Mobile cart options are available for convenient and rapid relocation.
- The seal-less diaphragm pump design prevents leaks and failures associated with running the pump dry.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 755652319177 |
| Division | PRO |
| Height | 32 IN | 81.280 CM |
| Length | 36.5 IN | 92.710 CM |
| Width | 23 IN | 58.420 CM |
| Volume | 15.546 FT3 | 0.440 M3 |
| Shipping Weight | 182 LBS | 82.554 KG |
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (mm) | 38.1 |
| Maximum Air Pressure (bar) | 5.5 |
| Maximum Air Pressure (kPa) | 550 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (L/min) | 132 |
| Maximum Fluid Pressure (bar) | 4.8 |
| Maximum Fluid Pressure (kPa) | 480 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.175 |
| Maximum Storage Temperature (°C) | 40 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | SaniForce |
| Power Rating (HP) | 2 |
| Series | 1040e |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Air Pressure (MPa) | 0.55 |
| diaphragm_compatible_material | Santoprene |
