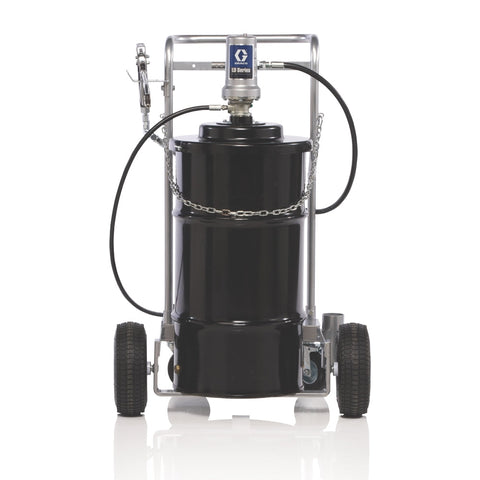

Graco | 24J048 LD Series 50:1 120 lb. (54 kg) Grease Pump - Mobile Package
Graco
Model: 24J048
The LD Series pumps are designed for lower-volume applications, handling up to 7,000 lb./year (3175 kg./year). They offer a compact, flexible, and durable solution.
- The Three Inch Air Motor enhances flow capacity.
- An engineered, durable design features a patented cup and plate system that replaces O-rings, extending the product's lifespan.
- The modular air valve allows for easy configuration of air inlet and exhaust locations with simple adjustments.
- Patented pilot valves feature a self-cleaning design for improved reliability in dirty air conditions and minimize pressure drop for reduced stalling and smoother flow.
Operational Specifications
| Specification | Value |
|---|---|
| UPC Product | 633955618466 |
| Division | LED |
Technical Specifications
| Specification | Value |
|---|---|
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Maximum Working Pressure (bar) | 345 |
| Maximum Working Pressure (kPa) | 34500 |
| Maximum Working Pressure (psi) | 5000 |
| Air Inlet Size (in) | 0.25 |
| Maximum Working Pressure (MPa) | 35 |
| Model | LD |
| Container Size (lb) | 120 |
